ON-FARM WATER OPTIMISATION MANUAL FOR MAZIBA SUB-CATCHMENT, KIGEZI HIGHLANDS

1.1 What Is a Catchment?

A catchment (or watershed) is the total land area that collects rainfall and drains toward a common point (river, lake, etc.). In Maziba, all rain falling on the hills and farms (the catchment boundary) eventually flows via headwater streams into the main Maziba River, feeding the Kagera/Lake Victoria basin (Saturday et al., 2025). Upstream–downstream relationships mean that activities upstream (e.g., farming or deforestation on headwater slopes) directly affect downstream flow and water quality. For example, if hillside farmers near the headwaters clear forests or cultivate steep land without buffers, they send more sediment and nutrients downstream, impacting communities near the dam. A catchment thus integrates the whole water cycle: precipitation enters at the top, flows through midstream and lower reaches, and exits at the outlet, supplying irrigation, domestic, and ecosystem needs along the way.

1.2 Rainfall–Runoff–Infiltration Processes

The water balance for a catchment equates inputs and outputs:

${\textstyle P-ET-Q=\mathrm {\Delta } S+\mathrm {\Delta } G+\mathrm {\Delta } W}$

where P is precipitation, Q is surface runoff (streamflow out of the catchment), ET is evapotranspiration, ΔS is the change in stored soil/groundwater, ∆G change in groundwater, and ∆W is the change in surface water.

Figure:1 Simplified partitioning of rainfall (P) into runoff Q, evapotranspiration E, and storage/infiltration (ΔS + I) under the catchment water-balance model

Runoff drivers on slopes: Steeper slopes generate faster runoff because water has less time to infiltrate and is more likely to erode soil. Maziba’s terrain is very hilly (“steep topography…results in high erosion potential”, so gravity-driven runoff is strong. Rainfall intensity also matters: heavy tropical rains (e.g., short, intense downpours in March–May and Sept–Nov (Saturday et al., 2025) can exceed the soil’s infiltration capacity and trigger overland flow.

Vegetation cover: Plant cover and roots slow runoff and enhance infiltration. In general, soils under forest or grass absorb water more quickly than bare or tilled soils. Organic matter from vegetation and crops binds soil into stable aggregates, creating pore space for water. In Maziba, most land is cropland (tubers, bananas, beans, etc.) with limited remnant forest. Where vegetation is sparse or removed, raindrop impact can break down soil structure and form a hard crust, sharply reducing infiltration. Thus, maintaining ground cover (mulch, residue) is key to moderating runoff.

Infiltration mechanisms: Water entry into soil is governed by texture and structure. Soil texture, the coarse-textured (sandy) soils have large pores, so initially high infiltration (often >7.6 mm/hr). The fine-textured (clayey) soils have small pores and can limit infiltration to <1.3 mm/hr. Maziba soils have clay pans in subsoil (Nseka et al., 2022), suggesting moderate-to-slow infiltration. Good aggregation (granular/crumb structure) maintains flow paths, whereas compaction or surface crusts block pores. Dry soils absorb rapidly, but as they wet out, the rate declines to the slowest layer. In short, inflow is controlled by the slowest (least permeable) zone(Johnson, 1963). The table below compares typical infiltration rates for different soil textures and surface conditions (after USDA NRCS classifications(Brunner, 2026) and field experience):

Table: Approximate infiltration capacities for soils by texture (hydrologic soil group) and land cover.

Soil Texture (HSG)	Land Cover/Condition	Infiltration Rate (mm/hr)
Sandy (Group A)	Forest/grass (loose)	>8–15 (high)
Sandy (Group A)	Cropland (tilled)	~4–8
Loamy (Group B/C)	Mixed vegetation	~3–6
Loamy (Group B/C)	Compacted/bare	~1–3
Clayey (Group D)	Vegetated	~1–3
Clayey (Group D)	Cultivated (dry surface)	~0.2–1 (very low)

The above illustrates that soil and cover work together: even a loamy soil can have greatly reduced infiltration if it is tilled or crusted. In Maziba, soils beneath well-vegetated plots (e.g., forest fragments) would infiltrate relatively quickly, but over-cultivated fields, particularly on slopes, likely exhibit slower rates (as shown by the lower rows).

1.3 Determinants of Runoff in Maziba

In Maziba’s context, several site factors control runoff rates and erosion:

• Slope steepness: The catchment’s steep hills (up to ~25° or more on ridges) accelerate flow. Studies note that Kigezi highlands like Maziba are erosion “hot spots” due to their raised terrain. Empirically, Ugandan guidelines classify slopes >15% (about 8.5°) as steep, where only terraces and heavy conservation can prevent severe erosion. Farmers should measure slope (e.g., with a clinometer or simple “rise/run” method) and treat fields accordingly.
• Soil texture and layering: Field data are sparse for Maziba, but local research suggests deep profiles with clay-rich subsurface layers(Nseka et al., 2022). Clayey subsoil (hydrologic group C/D) greatly limits infiltration (often <2 mm/hr (Brunner, 2026), so these areas generate more runoff per rain event than sandy uplands. Any soil pans or bedrock near the surface will also “perch” water and cause quick runoff. In contrast, any coarse-textured pockets (gravel, sandy loam) would absorb more.
• Soil compaction and organic matter: Intensive cultivation and livestock trampling tend to compact the topsoil. Compacted or platy layers (often due to low organic carbon) drastically slow water entry. A local study confirms Maziba has high population pressure, deforestation, and over-cultivation, all leading to soil erosion and depleted organic matter. Infiltration ring tests or penetrometer readings (see next section) will help quantify this: very low infiltration or high penetrometer resistance indicate compaction.
• Land management and conservation practices: About 36% of Maziba farmers use bench or graded terraces, 21% use mulches, and 13% use trenches to reduce runoff (Ndemere, 2018). Nonetheless, fields remain prone to erosion, suggesting suboptimal design or maintenance. Practices like contour plowing and grass strips can reduce slope length and speed of flow. Areas without any conservation (bare furrows, straight down-slope planting) will shed water fastest. Overall, runoff is highest on steep, conventionally tilled fields and lowest under well-managed cover (grass, mulch, agroforestry)(Ndemere, 2018).

Climate and rainfall: As noted, heavy rains in short seasons produce more runoff. Farmers should note that most runoff occurs during the Mar–May and Sep–Nov rains (Saturday et al., 2025). Seasonal variation (dry vs wet season) means flows and infiltration rates change: soils often harden in the dry season, then crack and absorb water suddenly when rains begin (possibly causing temporary high infiltration then rapid saturation).

1.4 Practical Field Assessment

The following field procedures enable farmers and extension workers to quickly gauge slope, runoff, and soil conditions on a farm. These can be done with simple tools (ruler, container, soil auger, etc.) and recorded in a table for easy comparison.

1. Slope estimation: Measure the steepness of fields by either a clinometer (inclinometer), a smartphone app with “level” function, or the “Rise over Run” method (place a level board or string at known length and measure vertical change). Categorize slope using Ugandan guidelines: e.g.
   1. Low slope: <3% (flat) – normal planting across contours.
   2. Moderate: 3–15% – use contour planting, ridges, grass strips.
   3. Steep: >15% – require terracing or bench support. Record slope in percent for each field or plot (Slope = (height rise / horizontal distance) ×100).
2. Runoff observation: After a heavy rain, watch where water flows and how quickly. Dig a small test furrow (30–50 cm long) on the slope, block one end, and measure how much water accumulates or runs off over a set time. Observe soil surface: note any rills (small channels) or sheets of flow. Record “Runoff present” (yes/no) and type (sheet, rill, gully). High runoff volume or visible erosion indicates the need for conservation.
3. Soil structure and compaction check: At a few spots, dig a small pit (~20 cm deep) and examine the soil profile. Note the layers and root density. Collect a handful of soil and gently squeeze: friable, crumbly soil is good. If soil is hard, blocks easily, or has a clayey sheen, structure is poor. Use a hand penetrometer (if available) or a simple pointed metal rod: press into moist soil and note how many kg/cm² or pounds/in² resistance (or how many cm you push per blow). Very high resistance (e.g.,>2000–3000 kPa) suggests compaction. Note the presence of any hardpan or plow pan (abrupt change in texture or color). Good structure (granular/crumb) and lower penetrometer resistance mean higher infiltration potential.
4. Infiltration ring test: Install a simple infiltrometer by placing a metal ring (≈20–30 cm diameter) firmly into the soil (hammer it in 5–10 cm). Pour a known volume of water (e.g., 5 cm deep) into the ring and measure the time to infiltrate to a small depth. Repeat or refill once steady. A double-ring setup (one ring inside another) is ideal, but a single ring can show relative rates. Calculate infiltration rate = (volume infiltrated/area) ÷ time (mm/hr). For rough classification:
   1. Fast (e.g.,>10 mm/hr) – very permeable.
   2. Moderate (2–10 mm/hr) – average infiltration.
   3. Slow (<2 mm/hr) – likely runoff; consider interventions. Document the measured rate for each field location.
5. Data recording: Use a simple table to log results at each sample point or field. For example:

Site	Slope (%)	Land Use (Crop/Cover)	Penetrometer	Infiltration (mm/hr)	Soil Structure	Runoff Observed	Actions
1	18	Maize	2500 kPa	1.2	Hardpan at 15 cm	Yes (rilling)	Needs terraces
2	5	Forest remnant	1500 kPa	12	Granular	No	Good condition
3	12	Sweet potatoes	2000 kPa	3.5	Some blockiness	Slightly (sheet)	Add mulch/cover

Quick decision rules From field data, follow simple guidelines:

1. Steep slope (>15%): If infiltration is low or runoff is visible, construct terraces or grass bunds. Plant along contours and establish deep-rooted perennials.
2. Moderate slope (3–15%): Use contour ridges or strip cropping. Ensure cover crops or mulches to protect the soil.
3. Very slow infiltration (<1–2 mm/hr): Likely compaction or claypan. Break up soil by ripping or subsoiling and add organic matter (mulch/compost) to improve structure.
4. Surface crusting: If soil is crusted (no macroaggregates), practice minimal tillage and maintain permanent cover to prevent sealing.
5. Visible runoff/erosion: Plant grass strips or vetiver along contours, and consider small check dams or bunds to slow flow.
6. Adequate infiltration & cover: If a plot shows high infiltration and no erosion, current practices are sufficient; just maintain cover and monitor.

2.1 Soil as a Water Storage System

Soils store water in the pore space between particles. After a rain or irrigation, excess water drains by gravity until the soil reaches field capacity (FC) – the moisture content at which large pores are drained and only capillary-held water remains(Datta et al., 2017). Further drying under plant uptake leads to permanent wilting point (PWP) – the content at which soil holds water so tightly (≈−1500 kPa) that plant roots cannot extract it (Datta et al., 2017). The plant-available water is the water between FC and PWP; equivalently, the available water capacity (AWC or TAW) is FC minus PWP in volumetric terms. For example, many loamy soils have FC~25–30% vol and PWP~12–15% vol, so AWC ~10–15% vol(Datta et al., 2017) (See Table 1 for typical values by texture.)

Soil water content is measured by gravimetric analysis (weighing field samples before/after oven drying) and inferred pressure-plate or sensor methods. The laboratory pressure-plate apparatus can determine FC and PWP at standard tensions (−33 and −1500 kPa, respectively). In situ, volumetric sensors (time-domain reflectometry, capacitance probes) give θ readings; tensiometers or gypsum blocks measure soil matric potential (suction). The gravimetric method is highly accurate (if done carefully) but laborious(Morris & Energy, 2006).

Table 1 summarizes representative FC, PWP, and AWC for several soil textures (data from USDA/extension sources (Datta et al., 2017). These ranges are indicative: a sandy loam might have FC≈21% vol and WP≈9% (AWC≈12%), whereas a clay loam might be FC≈29%, WP≈18% (AWC≈11%)(Datta et al., 2017).

Texture	FC (% vol)	WP (% vol)	AWC (% vol)
Sand	10	4	6
Sandy loam	21	9	12
Loam	27	12	15
Sandy clay loam	36	16	20
Clay loam	29	18	11
Clay	40	22	18

field capacity= FC; permanent wilting point = PWP; plant-available water= AWC=FC–PWP for common soil textures.

2.2 Soil Types in Maziba

The Maziba catchment (Kigezi region, SW Uganda) contains undulating hills and valleys. Dominant FAO soil groups are Luvisols (~42%) and Acric Ferralsols (~31%) with some Planosols (~22%) (Ndemere, 2018), reflecting medium-textured, acidic, well-drained soils with frequent leaching. Locally encountered textures include sandy loam and clay loam, as well as compacted hillside soils (zones of traffic or erosion-deposited material).

1. Sandy loam soils: These light-textured soils (roughly 50–70% sand, 0–20% clay) have large pores and rapid infiltration but low water retention. Basic infiltration rates on sandy loam are high – roughly 20–30 mm/hr – meaning rainfall quickly enters the soil. Conversely, FC is relatively low (e.g., ~15–25% vol.), and PWP is also low, so total plant-available water (AWC) is modest. Water retention curves for sandy loam are steep: moisture drops quickly as suction rises, reflecting coarse pores. Crops on sandy loam in Maziba will need more frequent irrigation or rainfall; mulches and organic matter help retain moisture. Because of low native fertility, these soils benefit from amendments. Good tillage and surface cover are needed to avoid crusting and runoff on these permeable soils.
2. Clay loam soils: These have higher clay content (25–35% clay) and more silt. They hold more water (FC ~30–40% vol., WP ~18–25% vol., so AWC often ~10–15% vol) but infiltrate water more slowly. Infiltration tests rate basic infiltration ~5–10 mm/hr on clay loam. Water retention curves are flatter: clay loams store water at higher suctions, and plants can extract more deeply held water. However, heavy rains may pond or run off on slopes before infiltrating if the soil is saturated or crusted. These soils often have good water supplies but can suffer from waterlogging or erosion. Good structure and organic matter reduce surface sealing. Conservation tillage and bench terraces can be important on slopes to slow runoff.
3. Compacted hillside soils: On steeper slopes or farm tracks, soils can become dense (BD ~1.5–1.7 g/cm³ or higher), reducing porosity and infiltration. Such soils show low AWC (pores collapsed) and high runoff risk. Management: Remediation involves loosening the plow pan or hardpan (deep ripping or planting deep-rooted legumes), plus adding organic amendments and ground cover. Avoiding machinery or animals on wet fields is key. Increasing ground cover and root biomass (e.g., through grasses or legumes) helps break compacted layers over time.

2.3 Root Zone Water Management

Most annual crops in Maziba have relatively shallow root zones (often 0.1–0.3 m for maize, vegetables, beans), so the soil layer actively supplying water is thin. A small root zone holds little water, so even moderate water use can deplete it quickly. Irrigation (or rain) must be frequent enough to refill these shallow layers. For example, a 0.2 m root zone with AWC ~10% vol holds only 20 mm water; a 5 mm daily crop need exhausts 25% of this in one day, so irrigation might be needed every 3–4 days during peak use.

Beyond the root zone, water can infiltrate deeply. Deep infiltration beyond roots is generally “lost” to the crop (unless capillary rise returns it). But deep percolation is useful for leaching salts or recharging groundwater. When subsurface layers are wetter (or a shallow water table exists), water can move upward into the root zone by capillarity. Capillary action draws water against gravity through small pores, especially immediately following irrigation. This can buffer crops between irrigations; conversely, excessive capillary rise (e.g., with saline water) can bring salts up into the root zone. Water in heavy rains or irrigation may bypass the soil matrix via cracks, root channels, or wormholes, moving quickly into deeper soil (preferential flow). Preferential flow can result in uneven wetting: some pockets remain dry while others flood. In cracked clays, water can rapidly penetrate and re-saturate deeper layers (beyond normal infiltration rates). Managing this requires uniform application and maintaining a structured soil (e.g., via cover crops).

2.4 Improving Soil Structure

Good soil structure increases porosity, infiltration, and AWC. Key practices include adding organic matter, reduced tillage, cover cropping, and compost incorporation. These practices build stable soil aggregates and pore space.

• Organic amendments: Applying compost, manure, or mulch gradually increases soil organic matter (OM). More OM directly holds water and also promotes aggregation (indirectly raising porosity and AWC). For example, one study found that amending a compacted sandy loam with 33–50% food-waste compost (by volume) lowered bulk density from ~1.5–1.8 g/cm³ to ~1.2–1.4 g/cm³ (a ~17–20% decrease) (USDA, n.d.-b). (While 30–50% amendment rates are very high, they illustrate that even moderate OM boosts can measurably lower BD and increase macroporosity.) In practice, adding ~5–10 t/ha of compost or manure per year can begin to improve structure within 1–2 seasons. Over longer periods (3–5 years), soil tests often show BD dropping by ~0.1–0.2 g/cm³ and porosity rising several percent as OM accumulates.
• Reduced tillage: Minimizing disturbance (no-till or low-till) preserves aggregate structure and prevents formation of compacted layers (plow pans). Conservation tillage retains crop residue, which protects soil from raindrop impact and reduces surface sealing. Reduced tillage also helps soil fauna (earthworms, roots) keep pores open. Long-term no-till can significantly increase porosity: field trials often find 5–10% higher macroporosity and correspondingly lower BD in no-till vs plowed soils.
• Cover crops: Growing cover crops or green manures (e.g., legumes, grasses) between main crops adds continuous root channels and organic inputs. Fibrous roots help break subsoil compaction, and residues add OM. Within 2–3 years of continuous cover cropping, soils often show measurable gains in OM (e.g., +1–2% OM), BD reduction (~0.1 g/cm³), and higher infiltration. Deep-rooted covers (e.g., radish, alfalfa) can penetrate hard layers, further increasing water-holding pore space.
• Compost incorporation: Spreading finished compost (yard, kitchen, or farm waste compost) and mixing it into the topsoil provides immediate organic matter. Even one compost application (e.g., 10 t/ha) can increase soil OM by 0.5–1% and improve porosity noticeably. In sandy loams, adding ~2–3% compost by volume can lower BD by ~0.1 g/cm³ and raise AWC by a few %vol.

Quantitatively, numerous studies confirm that building OM lowers BD and raises AWC (Rivenshield & Bassuk, 2007; USDA, n.d.-b). USDA soil health guides note that soils rich in organic matter have the lowest bulk density, whereas compaction (e.g. heavy machinery) can create a plow pan with very high BD(USDA, n.d.-b). As OM rises, both the pore volume and AWC increase; conversely, compaction can halve the available water(USDA, n.d.-b).

Practical steps and timeline: Immediately, farmers can apply cover crop mulch or compost to see small improvements within one season. Eliminating unnecessary tillage (no-till) begins preserving structure right away. However, building significant OM (and correspondingly large changes in BD or AWC) typically requires multiple seasons. For example, a study cited one system increasing soil OM by ~2% over 5–10 years of conservation practices(USDA, n.d.-b). Thus, soil structure improvement is a gradual process, but the benefits to water retention and infiltration (and crop yield) accumulate year by year.

2.5 Soil Moisture Monitoring

Field methods: The simplest test is the “finger” or feel-and-appearance test, in which the farmer digs a handful of soil from the root zone and judges moisture by touch and appearance. Well-saturated soil forms a ball with free water, whereas at field capacity it forms a slightly moist ball, and at dry it crumbles easily. With practice, this low-cost method can estimate available water to within ~10% accuracy (Morris & Energy, 2006). A hand-operated soil probe or auger helps retrieve samples without too much disturbance. For higher accuracy, the gravimetric method is used: collect a sample, weigh it wet, oven-dry it, and compute moisture by mass. This gives precise volumetric content (via BD)(Morris & Energy, 2006), but it requires lab equipment and time. It is useful for sensor calibration or occasional checks.

Sensors and devices: Common installed sensors include:

• Tensiometers: Measure soil matric potential (suction) directly. A tensiometer is a water-filled tube with a ceramic tip and a vacuum gauge. It equilibrates with the soil so that the gauge reading reflects soil tension. Tensiometers are inexpensive (≈$50–150 each) and accurate in moist soils (0–80 cb), but require maintenance (refilling, avoiding air leaks) and cannot be left out if the soil freezes. They are moderately accurate for irrigation decisions.
• Soil moisture probes (dielectric sensors): These measure volumetric water content by the soil’s dielectric constant (capacitance or TDR). Quality probes (e.g., FDR, TDR) are very accurate (<1% error if calibrated) and fast, and can be wired to loggers. However, they are relatively high-cost and require careful installation to avoid air gaps and soil contact issues. They can be used for multiple depths if installed properly.
• Hand-held meters: Simple moisture meters or probes (analog or digital) also exist. They are moderate-cost and provide quick VWC or tension readings at a point. Accuracy varies, but they are handy for spot checks.

RAINWATER HARVESTING AND ON-FARM WATER STORAGE

Water harvesting is defined as the collection, conveyance, and storage of rainwater for later use in the production of biomass (food crops, pasture, and trees), livestock production, and for domestic purposes. In sum, rainwater harvesting is the process of collecting and improving the productive use of rainwater and reducing unproductive runoff. This often involves collecting rainwater from a catchment area and channelling it to cropping areas (ICRAF, 2007). In microcatchment systems, water is collected from land adjacent to growing areas, while in macrocatchment systems, large flows are diverted and either used directly or stored for supplementary irrigation. Rainfall has four facets: (1) rainfall induces surface flow on runoff areas, (2) at the foot of slopes, runoff collects in basin areas, (3) here, most infiltrates and is stored in the root zone, and (4) after infiltration has ceased, the stored soil water is conserved.

3.1 Components of rainwater management systems for agriculture

All water-harvesting systems comprise catchment areas (sources of water), conveyance mechanisms, and provision for storage and application. Catchments include natural slopes, sealed catchments, rocks, roofs, roads, and rivers. Storage can be either short-term or long-term.

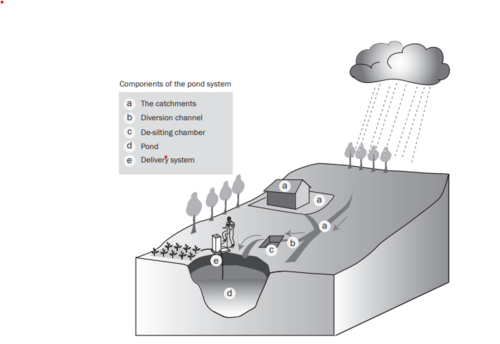

Figure 1: Components of Rainwater harvesting system (Maimbo et al., 2007)

3.1 Contour Bunds and Terraces

The purpose of contour Bunds and Terraces is to slow runoff, conserve soil moisture, reduce erosion, and recharge groundwater on sloping fields. Contour bunds and terrace systems intercept hillside flow, forcing water to pond and infiltrate (Rusoke et al., 2000). Maziba’s steep fields and heavy rains cause severe soil loss and flash runoff. Well-built bunds and terraces can capture rainfall where it falls, preventing downstream gullying and storing water where crops grow. They are particularly suited to Maziba’s moderate slopes and can be used under annual crops or tree fields. Even during dry spells, the recharged soil supports longer crop growth.

Design and Dimensions of Bunds

Bunds typically have a trapezoidal cross-section: crest width ≈0.25–0.3 m, base width ≈0.8–1.0 m, and height ≈0.3–0.5 m (larger on steeper slopes)(Government of Uganda, 2016). For example, one guideline is bund height ≥0.25 m, top ≥0.25 m wide, side slopes ~1:1(Government of Uganda, 2016). Wider bases increase stability but require more soil. Bunds should be leveled across the contour (no downstream grade) so water ponds evenly without concentrating. “Tie” ridges or “beckers” (small cross-bunds ~2–3 m long) can subdivide the land into micro-catchments, reducing the length of free flow between bunds (Shinde & Chavhan, 2018a). Materials are usually locally available soil (or stone for stone bunds). Bunds can be planted or grassed for reinforcement.

Table 3.1 compares bund types:

Bund Type	Materials	Typical Size	Cost	Notes
Earthen Contour Bund	Excavated soil (on-site)	Height 0.25–0.5 m, base 0.8–1.0 m	Low	Simple, all-labor; requires compaction; suitable slopes ≤10%.
Stone/rock Bund	Local stones & soil	Height 0.3–0.5 m, base ~1 m	Med	More durable, costly (materials, labor); good on steeper sites.
Bench Terraces	Earthen bench + cut terrace	Bench width ≥1 m, height 0.3–0.5 m	Med-High	For steeper slopes (>10%), heavy excavation and high labour.
Graded (Fanya Juu)	Cut + throw downslope	As above, with the down-slope face	Low	Upslope cut, downslope bund; good for reversible field irrigation.

Engineering principles

Contour bunds intercept overland flow and act as temporary reservoirs. By lengthening the flow path and storing water, they maximize infiltration time. Properly spaced bunds create a series of mini-dams. Design spacing (vertical interval) depends on slope: gentle slopes need wider spacing (10–20 m apart), whereas steep slopes require bunds every 5–8 m (Shinde & Chavhan, 2018). Bunds must be compacted to resist overtopping and seepage. Drain outlets or spillways (small vegetated channels) may be needed in long bunds to safely carry overflow.

Site selection

Install on moderate slopes (2–10%). Avoid low spots or depressions where water will pond above soil depth; avoid areas near very steep gullies or swampy flats. Choose areas with well-drained soil (silt to clay loams) and deep soils for better storage. Bunds should align with natural contours. Mark contours with a simple line level or rope water-level, then stake permanent guides. Do not build bunds where the bottom of the field is poorly drained (which could waterlog).

Construction steps

(1) Survey contour lines with a line level. (2) Excavate a shallow V- or U-shaped trench along the contour; set the flat bottom to zero grade. (3) Use the cut soil to form the upslope edge of the bund (or downslope if fanya juu style). (4) Shape and compact the bund, ensuring uniform height. (5) Roughen slopes and plant grass/vegetation on bund crests for stability. (6) If using tie ridges, dig small pits (80×80×40 cm) at bund intersections, and use that soil for cross ridges.

Maintenance

Inspect bunds after each heavy rain. Remove or level any overtopping washouts immediately; re-compact any animal-walk breaches. Annually (e.g., before the rainy season), clear debris and reseed bare sections. Check outlet spillways (if any) and remove silt. Vegetation should be managed: some grass is good to protect the soil, but excessive weeds or trees on bunds can cause tunnels and collapse. Table 3.2 (Maintenance Checklist) and the Gantt chart below schedule these tasks.

Cost/Benefit

Contour bunding is generally low-to-medium cost. Manual (hand-dug) bunds cost little except labour, while mechanized or stone bunds cost more. Maintenance is modest (5–10% of the initial cost. Benefits include ~20% yield increase (Maize/millet etc.) and greatly reduced soil loss. In Maziba, protecting fields from annual erosion likely outweighs the small loss of cropland for bunds.

Safety and Livestock: Keep people and livestock off the downslope side of bunds and spillways, as foot/hoof erosion can breach the barrier(Stephens, 2010). Fencing can protect bund toes. Provide safe cattle watering or crossing places away from the bund. Ensure spillways are not softened by animals.

Environmental impact: Contour bunds conserve soil and reduce sediment in streams, protecting wetlands and rivers. They slightly alter natural drainage by slowing water, which can be beneficial if overflow is controlled. Avoid creating permanent waterlogging upslope. Use local materials to minimize disturbance. Positive impacts outweigh minimal disturbance from construction.

Monitoring indicators: After establishment, track soil loss rates downslope, soil moisture in bunded areas, crop vigor/yield between bunds, and downstream sedimentation reductions. Monitor bund integrity (no sinkholes or overtops) each season. Water table and base flows in nearby springs/rivers may slowly rise as recharge improves.

3.2 Micro-Catchments, Trenches & Negarims

Concentrate and store runoff in small localized catchments to establish trees, shrubs, or crops on dry sites. Micro-catchments (e.g., Negarim basins, V-trenches, semi-circular pits) capture rainfall from a surrounding area into a basin and pit, boosting infiltration to the root zone (Government of Uganda, 2016). They are ideal for individual trees or planted rows.

Local relevance

In Maziba’s hilly fields, micro-catchments (like Negarims) can rescue young trees or high-value perennials from drought by channeling runoff into their pits. Given Maziba’s ~18 °C climate and bimodal rainfall(Saturday et al., 2025), these basins can store every rain event for dry-season use. They also cut erosion by breaking up the slope into checkerboard depressions.

Types and Design

Common designs include (a) Negarim (diamond basins): diamond-shaped flat basins (~10–50 m²) with a small infiltration pit (20–40 cm deep) at the low corner(Government of Uganda, 2016). Basin bunds ~0.25–0.4 m high (top ≥0.25 m, slopes ~1:1) hold water. (b) Semi-circular or V-shaped basins: open-ended basins that let excess flow around tips (less storage, but simpler)(Government of Uganda, 2016). (c) Trenches/infiltration pits for crops: Linear trenches (0.3–0.5 m wide, 0.3–0.4 m deep) can be dug along contour every 2–10 m, with small pits for tree planting(Government of Uganda, 2016).

Table 3.3 compares micro catchment options (Government of Uganda, 2016):

Type	Catchment area	Pit size	Bund height	Slope limit	Cost	Use
Negarim (diamond)	10–100 m² per basin	20–40 cm deep	≥25–40 cm (bund)	up to ~5%	Low–Med	Fruit trees, fodder shrubs on dry land.
V/Semi-circular basin	5–50 m² (per unit)	20–40 cm deep	≥25 cm	≤5%	Low	Individual trees; small homestead pits.
Diamond (closed)	as above	20–40 cm	≥25 cm	≤5%	Low	More storage, small blocks of trees.
Contour trenches	strips between bunds	30–60 cm (deep)	Bund as needed (tie ridges)	≤15%	Low	Drainage across fields, crops on either side.

Engineering principles: All these designs aim to “harvest” surface runoff by increasing contact area (flat basins) and slowing flow into pits. The stored water percolates into the root zone or groundwater. Because Maziba rains can be heavy, basins/bunds must handle short-duration heavy flows (design for 5–10 min storm). Open-ended basins simply allow overflow around bund tips, so they never overfill the pit. Closed basins hold more water but risk overflows; hence, raised bunds and inlet ditches may be needed.

Site selection

Choose gently sloping (<5–8%) but uneven fields. Soil depth should be ≥1.5 m (roots need it). Avoid depressions where water would pool outside the basin. On steep or broken terrain, use V-catchments (overflows around the sides). For each micro-catchment, ensure a small up-slope diversion ditch (0.3% grade) can intercept any upstream flows that could overrun the basin block.

Construction steps: (1) Clear vegetation on catchment area. (2) Use line-level to mark contour grid. (3) Excavate soil for bund and pit in each unit: dig pit at basin corner, pile soil to form bunds around edges, compacting firmly. (4) Shape bunds to design height (~0.25–0.4 m) with top ≥0.25 m wide; leave bund ends open if using V-design. (5) Plant tree/seedling in pit (bare root or sapling ≥30 cm tall is recommended). Mulch the pit, and apply compost if available. (6) On larger scales, stagger rows so bund apices of one row align with basin tips of the next. Add a diversion cut-off trench above the block if needed.

Maintenance: Inspect pits/bunds early in the wet season. After major rains, check for breaches: repair any washouts immediately by rebuilding the berm and compacting. Remove sediment that has filled the pit (keep pit depth). Control weeds or crop around the pit; re-plant grass on any bare bund sections. Each season, prune out extra shoots, and replace seedlings if any die. Inherited designs with open V-ends need less upkeep than closed basins, but all micro-catchments benefit from annual clearing and minor earth-moving to restore the original shape.

Safety and Livestock: Protect young plantations from animals (plantation fencing, tree guards). For large basins, avoid letting livestock wallow in pits or run over bunds. Fenced watering troughs should be used instead of letting cattle drink from ponds to prevent algae or pathogen contamination.

3.3 Farm Ponds and Small Dams

The objective of farm ponds and small dams is to capture large volumes of runoff for on-farm irrigation, livestock, and fish farming. Farm ponds (excavated basins or earth dams) provide dry-season water storage. They also recharge shallow aquifers if allowed to seep slowly.

Local relevance: In Maziba’s highlands, small ponds can supply water through dry spells when streams dwindle. Ponds can also trap sediment from fields and serve as fish or livestock water sources. Given the ~1000 mm annual rains, a well-sited pond can fill reliably; however, the design must account for possible summer drought.

Types and Design Guidelines

Three common types – (1) Excavated Pond: Entirely dug out below ground (useful on flat ground). (2) Embankment (Watershed) Pond: Build an earthen dam across a small valley or depression, ponding runoff (favored on sloping land). (3) Levee Pond: A basin dug and sides built (like a shallow tank; less common). The embankment pond is usually the cheapest per cubic meter.

Key design parameters

The key design parameters include:

1. Capacity and Depth: Ensure volume meets irrigation/livestock needs. For perennial crops or fish, maintain ≥4 ft (1.2 m) water depth across most of the pond. Minimum depth 1–1.5 m at the dam for freeboard; average depth often 2–3 m in the center. (In very steep terrain, shallower is acceptable if lined.)
2. Dam/Embankment: Height = normal water depth + freeboard (safety; typically, +0.5 m). If designing a dam (embankment pond), side slopes are usually 2:1 (horizontal: vertical) or flatter for stability. Crest width ~0.8–1.0 m for access. A core trench (impervious clay core) is recommended under the dam to prevent seepage. Table 3.4 compares spillway options.
3. Inlet/Catchment: Locate where natural runoff can be piped or channeled. Do not build on large perennial streams unless an official permit (flood control) is obtained; target small streams or ephemeral gullies. A diversion or guide bund above the pond can steer water into it.
4. Spillway: Must safely carry excess runoff to prevent overtopping. Options include earth spillway (grass-lined chute), concrete drop inlet, or pipe spillway with apron(United States Natural Resources Conservation, 1981). For rural farm ponds, a simple vegetated chute 1–3 m wide (slope ≤10%) is common (Table 3.4). Its capacity should handle the 5-yr or 10-yr storm runoff of the catchment. As a rule, design spillways to pass runoff from frequent storms (1–10 year return) without damage (United States Natural Resources Conservation, 1981). The spillway floor should be armored with grass or stones to prevent erosion.
5. Liner: On permeable soils (sandy/very gravelly), line the pond bottom to reduce seepage. Options: compacted clay (cheapest, may crack when dry), heavy plastic sheet (geomembrane, high cost/low availability), or concrete (for troughs). Choose lined for deep irrigation ponds (High cost); unlined earthen is OK where seepage loss is tolerable or where bottom soils are clayey (Low cost). Table 3.4 summarizes.

Spillway Type	Materials	Capacity	Slope	Cost	Notes
Earth/grass chute	Compacted soil + grass	Moderate (10-yr flood)	≤10%	Low	Needs wide channel; easy, erosion risk if vegetation fails (United States Natural Resources Conservation, 1981)
Concrete drop-inlet	Concrete weir + pipe	High (safe for large storms)	Vertical drop + riser	High	Durable; can use a trash rack to keep out debris; requires engineering.
Pipe spillway	HDPE or steel pipe	Moderate	N/A (buried)	Med	Handles small flows; must ensure anti-seep collars and trash racks.

(Figure 3.1 shows an embankment pond cross-section.)

Site selection: Choose a site with a natural depression or narrow valley. The bottom should be relatively impermeable (test percolation or dig trial holes). Avoid areas that slope steeply (<4:1 sides). If there is no natural dam site, excavated ponds on flat ground are possible but costly. Ensure sufficient upland catchment area (even a few hectares of watershed can fill a pond in rainy seasons). The site must not flood existing wetlands or swallow channels of permanent streams (to protect fish migration and water rights).

Construction steps (Embankment pond): (1) Excavate a core trench along the dam centerline to the impermeable layer, backfill with compacted clay core. (2) Build a dam by placing excavated soil in layers, compacting each layer. (3) Shape dam slopes (2:1 or flatter) and crest width ~0.8–1 m. (4) Construct spillway – excavate a channel on one side of the dam, grade gently to a safe outlet, and line with vegetation or riprap. (5) Finish slopes with grass planting to prevent erosion. (6) Fill pond (rain/runoff or diverted stream).

For excavated ponds (no dam): Dig to target depth with gently sloping edges (1:1.5 to 1:3 sides) for safety. Can use the excavated spoil to build a small peripheral berm. Ensure the inlet channel directs water to the center rather than eroding banks.

Maintenance: After each rain, inspect the dam, spillway, and banks. Repair any eroded areas immediately (recompact soil). Keep spillway free of debris; re-grass any bare patches. Periodically (e.g., annually), check for animal burrows or vegetation penetrating the dam (dangerous) and remove roots. If livestock have access, build a drinking trough to prevent trampling the bank edges (trampling and wallowing accelerate failure). Dredge accumulated sediment in the pond every 3–5 years to restore capacity. Table 3.5 shows a sample maintenance calendar.

Safety and Livestock: Fence the area to keep animals and children away from the dam crest and steep banks. Provide a controlled watering point or ramp for livestock (e.g., slope with concrete blocks) instead of letting animals jump in arbitrarily. The spillway outlet must discharge where it cannot erode soil downstream (consider a stilling basin or energy-dissipating rocks).

Environmental impacts: Ponds convert runoff to on-farm storage, which is generally positive (less downstream flood peaks, more groundwater recharge). However, ponds can reduce flow to downstream wetlands/streams; designers should balance storage vs. conservation of stream baseflow. Do not pond water needed by lower riparian users. Always avoid impounding polluted runoff (e.g., animal yards) without treatment. Siltation is expected; trapping sediment in a pond is beneficial compared to letting it enter waterways.

Monitoring indicators: Monitor water level and use. Key indicators are: spillway operation (frequency), dam seepage rates (ideally small), water turbidity (should clear after settling phase), and rate of silt buildup (measured by pond volume loss). Also measure inflow vs. usage: a well-designed pond should refill in rainy seasons and not dry out completely every year. Fish growth or crop yields from irrigation are indirect performance indicators.

3.4 Environmental, Safety, and Wetland Considerations

The objectives are to ensure all structures do not harm (and preferably benefit) Maziba’s fragile ecosystems (wetlands, streams) and human health. Incorporate safeguards for people and livestock.

Local relevance: The Maziba catchment has headwater wetlands and streams vital for downstream communities and wildlife. Careful design must prevent siltation and pollution of these waters. Also, with high rainfall and steep terrain, sudden failures (bund collapse, dam overtopping) could cause dangerous floods. Safety planning is critical.

Wetland/Hydrology Principles: Maintain natural hydrological functions: buffer strips (grass or natural vegetation) should border wetlands and pond spillway outlets to filter nutrients and sediments(Stephens, 2010b). Avoid drawing water directly from protected wetlands. Use infiltration structures (bunds/trenches) to recharge rather than divert all runoff. Where possible, recharge ponds from field runoff rather than pumping water from wetlands. If a pond is to support aquatic life, preserve some shoreline vegetation, and avoid stocking unwanted species.

Safety & Livestock protection:

1. Fencing and Access: Protect steep banks, spillways, and bund toes with fences or planting to keep people and stock out. Wells or troughs should be provided for safe animal watering.
2. Warning Signs: If ponds exceed 1 m deep, install signs and provide steps/ramps. Man-made structures should have non-slip surfaces. Children should be kept away from pond edges.
3. Tree/Hedges: Do not plant trees on dam embankments or bund crests (roots can create seepage paths). Maintain trees outside the buffer zone.
4. Emergency Spillways: Design emergency overflow paths on higher ground and clear of dwellings, to avoid washouts endangering houses.

Environmental impacts

Beneficial effects include increased infiltration and soil conservation. Negative impacts are mostly construction-related and can be minimized by limiting vegetation clearing, using borrow pits responsibly (rehabilitate after digging), and avoiding impermeable liners that might cause downstream water deficits. Avoid introducing invasive water plants or fish.

3.5 Implementation, Maintenance Schedule & Monitoring

Implementation Checklist

For each water-harvesting structure, ensure: local stakeholder buy-in (farmers/commune), training on construction, and use of local materials. Conduct a basic soil analysis if possible (texture, percolation). Engage local technicians or an extension to supervise critical steps.

Monitoring Indicators

Beyond structure-specific signs above, overall indicators include: increased area under irrigation during dry months, rise in shallow groundwater levels, and reduced incidence of crop failure in drought years. Conduct yield surveys pre/post intervention and record rainfall vs. stored water volumes.

Maintenance Calendar

Timely upkeep keeps systems functional. Table 3.6 below is a sample Maintenance Calendar (months Jan–Dec). Adjust to the local seasonal calendar (dry/wet).

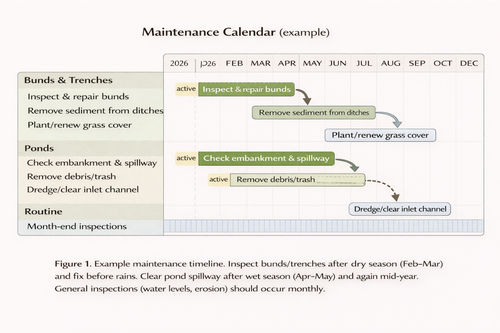

Figure: Example maintenance timeline. Inspect bunds/trenches after the dry season (Feb–Mar) and fix before the rains. Clear pond spillway after the wet season (Apr–May) and again mid-year. General inspections (water levels, erosion) should occur monthly.

4.1 Contour Farming (Plowing and Strip Cropping)

Contour farming means planting or tilling along level lines (contours) on a slope(Friday, 1999). Contours are fixed elevation lines that never run uphill or downhill. Vegetative or trash barriers (hedges, grass strips, piles) are established on the contours. As runoff flows, each contour barrier slows the water, causing suspended soil to settle and more water to infiltrate(Friday, 1999). Over time, this builds up a small terrace (wash-out or “front” terrace) upslope of each barrier, flattening the effective slope and reducing erosion. Contour crops (plowing, planting, and weeding along contours) further prevent channels of flow. Key effect: reduces runoff velocity and length, traps sediment, and increases infiltration into soil (Friday, 1999).

Local Drivers: Maziba’s smallholders grow crops (maize, beans, bananas, etc.) on slopes often >5%. With heavy rains, unchecked runoff quickly erodes topsoil. Contours are low-tech measures farmers can adopt with minimal inputs. They help farmers “intensify in place” by retaining moisture and fertility on existing fields(Jayashree, 2018). Contour hedges also provide forage (Napier/vetiver) and mulch.

Slope Guidance: Contour cropping is generally advised on slopes ≳5%. Gentle slopes (<3–5%) seldom need contouring, while steep slopes (>20–30%) may require stronger measures (see Section 4.2). (In practice, cultivation on slopes above ~50–60% should be avoided (Friday, 1999).

Design and Spacing: Lay out contours with simple tools (Friday, 1999). Barriers are placed at regular vertical intervals. A rule‐of‐thumb is 2–3 m vertical drop between bands. On a 20% slope, 2 m vertical corresponds to ≈10 m horizontally. Wider spacings (4–8 m vertical) still help, but closer (2–3 m) is most effective(Friday, 1999). E.g., a 15% field might have contour barriers ~10–13 m apart. Plow and plant between barriers on the contour. Leave a strip (0.5–1.0 m wide) of permanent vegetation on each contour (Friday, 1999).

Barrier Types:

1. Natural Vegetative Strips (NVS): Simply leave 0.5–1.0 m unplowed along the contour(Friday, 1999). Native grasses/Imperata regrow quickly, forming filter strips (“trash lines”) that trap sediment (Friday, 1999). Low cost/labor; no planting needed. They occupy land (slight initial yield loss) but improve the productivity of the cropped area by reducing erosion.
2. Grassy Hedgerows: Plant high-yield grass (Napier, vetiver, guinea grass) in the strip. Over 1–2 years, these form permanent hedges. (In other regions, hedgerows require ~0.5–1 m width and are pruned regularly)
3. Cut Trash Lines: Heap rice stalks, maize stover, or brush along contour (0.5–1 m wide) as a temporary wash-stop. Pin small stakes in place. (Effective in very steep or resource-poor fields.)

Maintenance

Keep contour lines intact. After plowing and cropping, inspect strips: repair gaps, remove weeds, re-tie or re-stack trash if loose. On graded contours, open notches to prevent continuous sloping water along the barrier. Hedgerows should be trimmed yearly (usually after rain) to maintain flow on the spillway and use biomass. Renew Napier/vetiver slips that die out (they are hardy once established). Remove sediment accumulated upslope of each barrier every 1–2 seasons (widening space as needed).

Monitoring Indicators

Soil erosion on contours can be monitored by simple means. Install a small runoff/erosion plot (e.g., 2×10 m) with a collection tank to measure runoff volume and sediment weight after heavy rains. Use sediment traps or a check-nose board behind a contour bund to quantify soil deposition. Record the percent ground cover or vegetation density on the hedges. Take repeat photo-points each season from fixed stakes to visually track gully/terrace change (USDA, n.d.-a). Key indicators: soil loss (t/ha/yr), runoff depth (% rainfall), gully headcut retreat, and grass survival rate. Protocols: measure after every major storm early on, then monthly or post-harvest. Mark boards for the water level in furrows or traps. (For novices, even “push a stick” into the soil upslope of the contour to see if a rut develops is instructive.)

4.2 Terracing (Earthwork and Bench Terraces)

Terraces are soil conservation structures constructed along the contour to reduce runoff velocity, control erosion, and improve water infiltration on sloping land. They divide long slopes into shorter segments, thereby limiting the erosive power of flowing water. Terracing is widely practiced in steep agricultural landscapes such as the Kigezi Highlands.

Common terrace types include:

1. Fanya-Chini Terraces: Fanya-chini (“throw soil downwards”) terraces are constructed by digging a trench along the contour and placing the excavated soil downslope to form an embankment. Trenches are typically 0.5–0.8 m deep. Sediment gradually accumulates behind the embankment, forming a stabilized terrace. These terraces are suitable for moderate slopes and are often reinforced with grass strips or vegetative barriers.
2. Fanya-Juu Terraces: Fanya-juu (“throw soil upwards”) terraces are formed by digging a trench and throwing the excavated soil upslope to create a ridge. The ridge traps soil moving downslope, gradually developing into a level bench over time. They are commonly used on steeper slopes in smallholder farming systems.
3. Bench Terraces (Stone or Earth): Bench terraces are fully developed terraces forming level steps along a hillside. They are typically constructed on steep slopes and stabilized with stone retaining walls or compacted earth embankments. In mountainous regions such as the Uganda highlands, farmers often construct narrow stone-supported bench terraces to enable cultivation on steep terrain.

Mechanism

Each terrace shortens the slope length, so runoff from above is spread over a flat. The embankment/face slows and spreads water, causing infiltration. Terraces capture soil on the upslope side and prevent gullying. Well-graded spillways (tiny channels or low points) safely pass excess water between terraces. In sum: terraces break long slopes, reduce erosion, and allow crops to grow on previously too-steep ground (Friday, 1999).

Slope Classes and Spacing

Terraces are used on slopes roughly 15–30% (8–17°), though modified forms (shallow bunds) can start at ~5–10%. On gentle hilltops (5–10%), a single low bund suffices, whereas on 20% slopes, bench terraces 1–2 m drop (vertical interval) are used. A rule from FAO: spacing (horizontal) ≈(1.2×height)/(slope)(Desta & Adunga, 2012). For example, Table 4.1 below (from extension literature) shows typical designs:

Land slope (%)	Vertical Interval (m)	Horizontal Interval (m)	Trench width (m)	Trench depth (m)
5	1.00	20	0.50	0.25
10	1.35	14	0.50	0.30
15	1.73	12	0.50	0.35
20	1.80	9	0.50	0.40

(Source: Thomas 1997, as cited in Ugandan extension(Rusoke et al., 2000))

Design and Construction:

1. Layout: Identify desired vertical drop (e.g., 1–2 m). On a 12% slope, that is ~12–17 m horizontally (see table). A string line or an A-frame can mark bench lines.
2. Dig Trench: Using a hoe or shovel, dig a shallow trench along the contour (flat bottom). For fanya-juu, use ditch spoil to form an upslope berm; for fanya-chini, place spoil downslope.
3. Embankment: Form a continuous ridge (embankment) parallel to the trench, sloping gently (front face 1:1 to 1:2) down to catch runoff. For stone benches, pile rocks and compact soil behind.
4. Spillways: Every few terraces (or at ends), dig a small outlet (grass-lined) to allow excess water to exit without overtopping the berm. Lower outlets (e.g., at 10–15 m spacing) are often cut to lead water to a safe outlet.
5. Stabilization: Immediately plant the toe of each berm (front face) with grass or Napier stakes to hold it. On bench terraces, Napier grass at 1–m spacing along the flat top prevents washouts.

Maintenance: Inspect after storms. Remove any breaches and repair eroded sections. Remove sediment accumulation upslope of each bench and redistribute it evenly. Replant grass on any washed-out berm sections. Keep spillways clear. Regularly till and re-level any irregularities on the terrace floor.

Cost/Benefit: Very labor-intensive and costly initially. Bench terraces may take 50–100 person-days per hectare to establish. However, they yield large benefits: soil loss can be reduced by >80%, and yields jump dramatically on previously eroded fields. (E.g., fanya-juu with a 30 cm ditch gave 49% higher maize yield in trials.) Over time, stabilized terraces can continue cropping for decades if maintained.

Suitability: Terracing is best on medium-to-steep slopes (10–30%) where simple contouring is insufficient. On gentle slopes (<10%) it is usually not needed (even broad rainwater furrows suffice). On very steep slopes (>30%), consider an agro-forestry approach instead of annual crops.

Emergency Response for Gullies: Terraces should be combined with measures to stop headcuts. If a terrace begins to breach into a channel, build a small stone or log check dam at that point (see Section 4.4). Always install cut-off drains upslope to divert excessive runoff away from vulnerable terraces.

4.3 Vegetative Barriers (Napier, Vetiver, Hedges)

Vegetative barriers are rows or strips of grass, shrubs, or trees planted along contours. Napier grass (Pennisetum purpureum) and vetiver (Chrysopogon zizanioides) are common. Their stiff stems and deep roots form living check-dams. As runoff hits a green hedgerow, flow is spread and slowed; sediment drops out, and roots bind the soil(Truong et al., 2008). Vetiver’s roots penetrate 3–4 m deep in the first year, stabilizing soil and enhancing infiltration. Napier (elephant grass) has dense fibrous roots to ~0.5 m. Both also yield organic mulch (cuttings) that improves fertility.

Local Drivers: Farmers often need forage and erosion control. Napier is already grown for fodder; integrating it in terraces serves a dual purpose. Vetiver (locally called Pratru in parts of Uganda) is promoted for erosion. Leguminous shrubs (calliandra, leucaena) can also be hedge species.

Design and Spacing: Plant hedges on the contour, interspersed with crops on each side. Typical design: leave a 0.5–1.0 m strip and plant slips 0.5–1.0 m apart in-row (to form a dense barrier). Extension guidelines suggest vetiver rows spaced ~1.0 m apart on erodible soils (and up to 1.5–2.0 m on stable soils)(Truong et al., 2008). Napier hedges are often planted in double rows 0.5 m apart, rows separated by 2–3 m. The key is to form an unbroken living wall. Common grass species: Pennisetum purpureum (Napier), Panicum maximum (guinea grass), and vetiver.

Construction: Obtain healthy cuttings or bunch splits. Plant at the start of the rains. For vetiver, push cuttings 5–10 cm into the ground (no topsoil needed) in a line on contour. For Napier, plant slips in a trench or holes. Early weeding around hedges is important. On bench terraces, plant grass along the terrace edge and at the backslope.

Maintenance: Cut back every 3–6 months (or after harvest) to prevent shading adjacent crops and to use as mulch/fodder. Maintain a grass-free spillway (narrow section) to channel excess water safely. Replant any gaps caused by drought or flood scouring. Hedgerows require few inputs after establishment.

Suitability: Live hedges work on nearly any slope up to 30%, in any soil (even shallow rocky). They are less useful on extremely steep rocky cliffs (trees are better there). Napier needs some moisture and fertility; vetiver tolerates poorer soils. Use Napier where fodder demand is high; vetiver where maximum erosion control is needed.

Monitoring Indicators: Check that hedge lines are intact (no breaks). Measure height or percentage cover of grass (target closed canopy). An increase in sediment caught in front of the hedge (using sediment traps) signals functioning. Monitor survival (% plants alive) and tiller count per meter of hedge. For vetiver, record grass height (~1–1.5 m common) and rooting depth (by digging a sample).

4.4 Check-Dams and Gully Stabilization

Check-dams are small barriers built across channels or gullies to slow water and trap sediment (often in a series). They reduce flow velocity and erosive energy, forcing water to overflow gently(Desta & Adunga, 2012). Common types: stone/gravel dams, gabions (wire cages filled with rock), sandbag dams, wooden or brush logs (called brush check-dams), and reinforced earth plugs. Each act like a mini-terrace in a channel.

Usage: Check-dams are used in existing rills and gullies. For nascent (finger) gullies, use temporary measures (brush or sandbags). For larger gullies, build semi-permanent stone or gabion dams. Always start stabilization at the gully head and work downstream in a series.

Design Guidelines: A check-dam typically has a crest (spillway) 0.3–0.5 m wide and is shaped trapezoidally. Crest height often ~0.5–1.5 m depending on gully size. The dam’s base should be 1.5–2× its height for stability. Position dams so that the crest of one is level with the base of the next upstream (this ensures they fill uniformly). As a rule-of-thumb, on a 15% gully slope, a 1.5 m high dam might be ~12 m upstream of the next (Desta & Adunga, 2012).

• Loose stone dam: Stack rocks across the gully, interlocking them. Fill voids with soil. Ensure a small notch (spillway) for overflow.
• Gabion dam: Wire baskets (~1×0.5×0.5 m) filled with stones, stacked to the needed height. Embed the bottom basket partly in the gully floor to prevent undercutting. Gabions can be raised later as sediment accumulates (Desta & Adunga, 2012).
• Sandbag/Bamboo dam: 50 kg soil-filled bags (or bamboo mats) piled in steps (3–4 layers) form a cheap dam(Desta & Adunga, 2012). Good for small gullies or trial-fixing.
• Brushwood dam: Poles/posts across channel with brush packing. Traps fine sediment(Desta & Adunga, 2012). Temporary (rotten in ~1 year) – use only for short-lived control or when materials are plentiful.

Maintenance: Inspect after the first heavy rains. Remove trapped sediment from behind dams only when it approaches the crest level (to maintain ponding). Fill any washouts or leaks. Repair cracks or undermining quickly. For brush dams, reinforce with new material annually.

Cost/Benefit: Stone and gabion dams are durable (10+ years) but labor- and material-intensive (haul rocks, build baskets). Sandbag and brush dams are cheap (locally available materials) but short-lived (1–2 years). In emergencies, they allow farmland to be used immediately while longer-term fixes are set in. The benefit is halted gully growth; uncontrolled gullies can destroy entire fields. Even a few days of labor to build a small dam can save many tonnes of soil and prevent farmland loss.

Emergency Gully Response: If a gully is actively eroding, quick action is vital. First, divert upslope runoff away from the gully by digging a small cut-off drain or diversion furrow. Next, plug the gully head: insert logs, trees, or sandbags across the headcut to slow it. Immediately install one or more temporary check-dams (sandbag or brush) across the gully bottom to slow runoff (even a 0.5 m high brush dam can trap significant sediment). As flows subside, replace or strengthen these with stone or gabions. Vegetate banks: plant vetiver or banana near the gully edges to quickly rebind the soil. Work gradually from top to bottom: each dam reduces energy, allowing the next downstream section to be fixed. This “staged repair” prevents new headcuts.

Suitability: Stone/gabion dams are suitable for larger or permanent gullies, especially in stiff clays or rock. Sandbag/brush dams suit small or young gullies on softer soil. All require some labor, but sandbags need minimal skill (filling sacks, stacking).

Monitoring Indicators: After installing measures, monitor whether the gully stabilizes. Indicators: soil is building up behind dams (measurable by rods), lateral widening stops, and vegetation re-establishes on banks. Check that dams are still intact after each major rain. Use erosion pins or a simple staff gauge in the channel to watch bed level over time. In the short term, visual checks (and photos) are most practical: e.g., place a stick across the gully crest and record its position relative to the dam lip after storms.

4.5 Monitoring, Maintenance, and Emergency Protocols

Routine Monitoring: Continually assess erosion control effectiveness. Key protocols:

1. Erosion plots: Establish a small standard plot (e.g., 2×5 m) on a representative slope. Measure runoff (collect in a calibrated tank) and soil loss (dry and weigh sediment) after each rain event. Keep records to track trends.
2. Ground Cover: Every season, estimate vegetation cover on terraces and barriers (0–100%). Less than ~70% cover indicates erosion risk. Simple line-transect or ‘canopy cover board’ methods work.
3. Gully/Headcut Surveys: At marked photo-stations (use GPS stakes), take digital photos upslope and downslope of fields annually to record changes. Measure any gully dimensions (length, width) with a tape. Note any new rill networks.
4. Sediment Traps: Install purpose-built traps (e.g., a 0.5×0.5 m box buried flush, with perforated base) below contour barriers to accumulate eroded material. Check these monthly to quantify sediment yield.
5. Infiltration Tests: Use ring infiltrometers (simple cut metal rings) to gauge infiltration rate differences between treated and untreated areas. Higher rates indicate the success of practices.

Maintenance Checks: After every heavy storm, inspect all structures: breaches in terraces, broken hedges, and overtopped check-dams. Fill breaches immediately. Trim and fix live hedges (remove debris lying on top). Keep furrows, drains, and spillways clear of debris.

5.1 Nutrient Pathways in Maziba

Maziba is a steep, intensively farmed watershed (722 km², 1,760–2,488 m elevation) in the Kigezi highlands (Saturday et al., 2025). About 85% of local livelihoods are subsistence agriculture (maize, potatoes, bananas, beans, etc.) on terraced fields (Saturday et al., 2025), leaving soils vulnerable to erosion and nutrient loss. Precipitation is bimodal (~1,033 mm/yr) with main rains Mar–May and Sep–Nov, and a short dry spell Jun–Aug. Intense rainfall on steep slopes drives overland flow and soil erosion, mobilizing nutrients to streams and wetlands. Key loss pathways include:

1. Surface runoff – dissolved N (especially nitrate and ammonium) and P are carried in overland flow and attached to eroded soil. About 70–83% of N and P lost in runoff occurs shortly after fertilization events(Zeng et al., 2021). For example, field studies in a subtropical maize system found 28 kg N/ha·yr and 1.2 kg P/ha·yr lost via runoff(Zeng et al., 2021). Runoff peaks during wet seasons, so losses are pulsed with storms.
2. Leaching – soluble nitrate moves downward to groundwater or tile drains under heavy rains or irrigation. In porous (sandy or deep) soils and high rainfall, substantial nitrate (and some ammonium) can percolate below the root zone. This pathway is especially important off-season when no crops grow (e.g., maize residue may leave nitrate in wet-season drainage). In Maziba’s humid climate, substantial leaching is likely, though quantitative data are lacking.
3. Volatilization – ammonia gas (NH₃) is lost from surface-applied urea or manure under warm, high-pH conditions. Without incorporation, 10–30% of urea-N can volatilize. Ammonia losses also occur from livestock manure and decomposing crop residues. While volatilization mainly affects air quality and contributes to global N cycles, it also reduces crop-available N.
4. Denitrification – under waterlogged or compacted soils (common in footslopes or paddy fields), soil microbes convert nitrate to N₂ or N₂O gases, losing N. This process can vary widely (often 10–30% of applied N in saturated zones) and contributes to greenhouse gas emissions.
5. Erosion/sediment transport – physical removal of soil carries N and P bound to particles. Since much P attaches to soil colloids, a large fraction of P loss (~70–90%) occurs with eroded sediment(Zeng et al., 2021). Nitrogen bound in sediment (organic-N, ammonium) is also exported. This sediment often ends up in wetlands or reservoirs, degrading habitat.

Seasonal patterns in Maziba reflect the bimodal rainfall: most runoff and nutrient export occur in the two wet seasons. For instance, a recent study reported higher suspended sediment and nutrient loads during April–May and Oct–Nov (peaks after planting). Dry-season baseflow is relatively clean but low, concentrating any remaining pollutants. Local soil types (deep red loams on slopes) and steep terrain accelerate runoff and reduce infiltration, amplifying surface losses (Saturday et al., 2025).

Figure 1: Nutrient flow pathways from fertilized fields to crops and the environment. Nitrogen (N) enters soil from fertilizer or manure, then is taken up by crops or lost via runoff, leaching, volatilization, or denitrification. Phosphorus (P) from fertilizer is similarly in soil, largely taken up by crops or lost bound to eroded soil in runoff. Wetland and stream sinks are indicated in blue.

5.2 Consequences of Nutrient Loss

Nutrient depletion in Maziba hurts farm productivity and regional ecology. Agronomic impacts include declining soil fertility, reduced yields, and higher input costs. Ugandan highlands historically had fertile soils, but intensive cultivation now exports roughly 80 kg of nutrients (N+P) per hectare per year through erosion and harvest, while farmers replace only ~1–1.5 kg/ha. This severe deficit drives gradual yield declines. Indeed, World Bank estimates suggest Uganda’s eroding soils cause ~1–2% annual yield loss. In Maziba’s fields, this means lower maize and potato harvests unless more fertilizer is applied (at cost).

Environmental impacts arise when N and P leave fields and degrade water bodies. Maziba drains into Rwandan wetlands and eventually Lake Victoria, so agricultural runoff contributes to regional eutrophication. Excess N and P fuel algal blooms and invasive water hyacinth, which deplete oxygen and block waterways. For example, Lake Victoria’s bays have seen marked eutrophication: rising P and N levels (from agriculture and sewage) have led to dense hyacinth mats and toxic algal blooms. These events killed fish, impaired drinking water, and required expensive cleanup. Studies note Lake Victoria’s northern bays near urban agriculture have “excessive concentrations of pollutants” above safe thresholds, causing algal deoxygenation that “threatens human and animal health” and increases water treatment costs. Such outcomes could occur in Maziba’s downstream wetlands if unchecked. Additionally, nutrient-rich runoff loads sediments into wetlands and streams, undermining their flood-control and filtration functions. Degraded wetlands can no longer remove contaminants effectively, closing a natural buffer against pollution.

5.3 Safe Fertilizer Application

To curb losses, farmers should adopt improved fertilizer management. Key practices include:

• Split application: Instead of one-time fertilizer addition, apply in two or more stages (e.g., one dose at planting, one at vegetative stage). Split N and P dosing ensures nutrients arrive during crop uptake peaks, reducing leaching and runoff. In Uganda, agronomists recommend applying half of DAP at planting and half at first weeding. Studies in East Africa show split applications can boost maize yields by 15–30% (especially on acidic soils). For example, maize yields in one trial increased from ~18 to 22–25 bags/acre after adopting soil testing and split fertilization. Split-dressing may require re-entry labor but pays off by lowering losses.
• Timing with rainfall: Coordinate fertilizer with the rains. Apply fertilizer just before moderate rains (but avoid heavy storms) so nutrients move into the root zone rather than sitting on the surface. Avoid applying Urea before a downpour, which drives N into leaching and runoff. If possible, use seasonal forecasts or local rain patterns: in Maziba, the long rains start in March, so planting and P applications should precede this, with side-dress N after soil settles. Cover crops during the off-season can also capture residual soil N.
• Incorporation/Placement: Bury or band fertilizer near roots. Incorporating (mixing) fertilizer into the soil via tillage or fertilizer shanks cuts contact with sunlight and wind, reducing ammonia volatilization. Surface broadcasting on bare soil is the most wasteful. Placing fertilizers in bands or pockets beside seed rows concentrates them where plants can use them. For instance, applying NPK in 2–5 cm deep placement holes (micro-dosing) has shown high efficiency in trials – one technique that delivers small doses (2–6 g per hill) into planting holes, boosting yields 20–80% over broadcast methods.
• Soil testing and nutrient budgeting: Before fertilizing, test fields for pH and nutrient levels. Acidic soils (common in Uganda) lock up phosphorus, making broadcast P ineffective. Simple pH or nutrient tests guide proper lime or fertilizer rates. Soil tests in Uganda are rare, but agronomists note that a test (UGX 20–30k) can save on unneeded fertilizer. Apply only the amount needed to meet crop targets (e.g., removal rates): for example, to produce 5 t/ha of maize, you might require ~100 kg N/ha and 30 kg P/ha; any additional N/P risk loss. The National Fertilizer Policy (2016) urges raising application toward 50 kg nutrients/ha to close the huge deficit, but emphasizes matching rates to soil tests and yields.
• Decision-support tools: Use tools like the Leaf Colour Chart (LCC) or smartphone apps that estimate crop N needs by plant greenness or soil data. These can help smallholders decide on split applications. Though few Ugandan farmers use formal DSTs, extension services and NGOs can introduce simple rules (e.g., “apply side-dress N 3–4 weeks after planting, unless soil test shows N>1% organic”). Participatory trials and demonstrations improve adoption.

5.4 Riparian Buffer Zones

Vegetated buffers along streams are a proven way to intercept nutrients and stabilize banks. In Uganda, the National Wetlands/Riverbanks Regulations mandate 30 m protected strips on most rivers. We recommend respecting (or exceeding) this standard: e.g., on flat farmland, a 20–30 m buffer on each side of streams; on steeper ground or highly erodible soils, extend buffers to 30–50 m. Wider buffers capture more overland flow and provide habitat.

Buffer design: A multi-tiered buffer is best:

1. In-stream bank zone (0–3 m): Plant deep-rooted stabilizers (e.g., vetiver grass, bamboo, papyrus, sedges) to armor the bank and trap coarse sediment.
2. Middle zone (3–10 m): Dense grasses and shrubs (e.g., Napier grass, Vernonia amygdalina, Azolla/Pistia in wet areas) form a sediment trap and nutrient filter. Napier is often used locally as fodder and erosion control.
3. Outer forest zone (10–30 m+): Native trees and bushes sequester nutrients and provide shade and habitat. These may include indigenous shade trees, fruit trees, or timber species preferred by locals. Studies in Uganda’s Budongo area found farmers favor Vernonia and Maesopsis as multistrata buffer species (Kasolo & Temu, 2008). Buffers should be primarily native plants to support local ecology. Exotic species (e.g., Eucalyptus) are discouraged in wetlands. Maintenance involves periodic gap-filling planting, controlling invasive weeds, and preventing burning. In the first 2–3 years, young buffer plants (especially grasses) must be replaced if gaps appear. After establishment, the buffer essentially “self-maintains” if left ungrazed and uncut.
4. Livestock exclusion: Buffer zones must be fenced to exclude grazing. Ugandan law explicitly forbids cultivation or encroachment in the 30 m river protection zone(Government of Uganda, 2000), implicitly requiring fences or other demarcation. Fencing prevents cattle from trampling banks and defecating in streams. Studies show that excluding livestock can cut stream fecal bacteria by ~60% (median). Gates or designated crossing points (culverts or hardened paths) may be provided to concentrate any necessary water access.
5. Policy and tenure: Many streams are on communal or private lands. Implementing buffers requires clarity on land rights. In Maziba, encourage integrating buffer requirements into local land-use plans. Government support (through District Environmental Offices) can help enforce the 30 m rule(Government of Uganda, 2000) and provide seedlings (e.g., through NFA nurseries). Sensitization campaigns are needed so farmers understand legal requirements and benefits. Payment for Ecosystem Services (PES) schemes could compensate buffer landowners for foregone cropping.

5.5 Livestock and Stream Management

Livestock grazing and watering practices strongly influence nutrient runoff. Key recommendations for Maziba’s mixed farms (where cattle, goats, and pigs often graze crop residues and access streams) include:

• Controlled Grazing: Implement rotational or paddock grazing to avoid overuse of riparian areas. Resting pastures allow vegetation to recover, reducing bare ground. Where possible, confine livestock to improved pastures and cut fodder (stall-feeding) when grazing pressure is high. In fenced systems, adopt grazing periods (<2 weeks per paddock) followed by rest, which maintains groundcover and lowers erosion.
• Stream Fencing: Erect durable fences along streams and dams to exclude livestock. This prevents direct deposition of feces and urine into waterways and allows riparian vegetation to regenerate. Numerous case studies (mostly in temperate regions) show fence-out can reduce stream fecal bacteria by over 60% (median effect). Even without quantitative data for Maziba, the principle holds: fenced-off buffers will filter runoff and keep cattle out. Provide gated crossings at planned points if needed, with reinforced surfaces (concrete pads or stone) to minimize bank erosion.
• Off-stream Watering: Install alternative watering solutions so livestock do not need to drink from streams. Options include solar-powered pumps or gravity-fed troughs filled from springs or rainwater tanks. Windmills or manual pumps can also supply clean water. A trough system should be placed at least 30–50 m from any stream and be accessible to all herd members. Well-designed troughs reduce stand-off areas and muddy patches near water, cutting sediment runoff.
• Manure Management: Collect and handle livestock manure properly to keep nutrients on the farm and out of water. Daily collection of bedding-stall or kraal manure followed by composting significantly improves nutrient retention. Covered compost pits or simple shelters (e.g., thatch roofs) prevent nutrient washout by rain. Farmers should apply composted manure to fields at agronomic rates (e.g., 5–10 t/ha) rather than leaving it in piles or open corrals. Properly composted manure boosts soil fertility (10–18% crop yield increases in Uganda) and reduces nitrogen leaching.
• Grazing Management at Stream Crossings: If livestock must cross waterways (e.g., moving between paddocks), concentrate crossings at hardened points. Install low-cost stone or concrete fords and small bridges. Vegetate the approaches to crossings with grass to filter sediment. This avoids ad-hoc trampling and gouging of streambanks along the whole river.

Table 5.5 compares livestock-stream management options.

Strategy	Description	Benefits	Notes / Examples
Controlled/Rotational Grazing	Divide the pasture into paddocks with rest periods.	Maintains vegetative cover; reduces erosion/runoff	Often practiced by ranches, it needs multiple herds or time.
Streambank Fencing	Install fences along streams to keep animals out.	Prevents direct contamination; allows buffer regrowth	NZ studies: median 62% drop in stream fecal bacteria. Local farmers can use wooden posts/wire or live fences.
Off-stream Watering Points	Provide troughs, wells or pumps away from streams.	Satisfies animal thirst; eliminates streambank damage	Solar troughs or spring developments are effective.
Hardened Crossing Points	Designated river crossings with gravel/concrete pads.	Protects banks from trampling; concentrates nutrients	Helps manage inevitable crossings during transhumance.
Monitoring Indicators	Upstream vs downstream tests for E. coli, nitrate, and bank erosion surveys	Measures water quality improvements; guides action	Simple field test kits or local lab analysis for N and microbes.

6.1 Irrigation Efficiency Concepts

Water productivity measures crop yield per unit of water used. It can be expressed as kilograms of crop per cubic meter of water (kg/m³) or its inverse (m³/kg). Equivalently, one can use “yield per irrigation depth”. For example, an Ethiopian study reported water productivity rising from 1.4 to 2.9 kg/m³ when irrigation was improved (roughly 0.14–0.29 kg per mm on a 1 ha field). These metrics help compare systems: a higher kg/m³ means more efficient use of water. Irrigation efficiency is the fraction of water diverted from the source that the crop actually uses. A related term, water application efficiency, is the percentage of water applied that is stored in the crop root zone. No system is 100% efficient; losses occur at many stages.

Table 6.1 summarizes common irrigation metrics and how to measure them.

Metric	Definition	Units	Measurement Method
Crop water productivity (WP)	Yield produced per unit water applied	kg/m³ (or m³/kg)	Weigh the final yield (kg) and divide by total water applied (m³). Use a flowmeter or irrigation volumes.
Yield per water (kg per mm)	Harvested yield per mm of irrigation (per ha)	kg per mm/ha	Same as above; e.g., 1 mm on 1 ha = 10 m³. Combine yield and depth applied.
Irrigation efficiency (%)	Water stored in root zone ÷ water pumped × 100	%	Compare flowmeter data (water pumped) with soil moisture increase (via probes or feel test).
Distribution uniformity (DU%)	Evenness of water across the field	%	Catch-can test: place cans in the field during irrigation and compute uniformity.
Evaporation loss	Water lost to air from soil or water surface	mm or % of applied	Estimate via evaporation pan, or measure ponded water loss.
Deep percolation loss	Water passing below roots (beyond crop uptake)	mm	Measure soil moisture before/after or use drainage lysimeter; or dig a 30 cm hole and see if water collects.

Field indicators of losses include wet patches or ponding (shows evaporation is bypassing roots or excess application), or gray, slimy soil with algae (sign of waterlogging). Waterlogging weeds (e.g. sedges, rushes, cattails) are telltale (Australian Government, 2025). A simple field test for deep percolation or waterlogging is to dig a hole (~30 cm deep): if water drips in, the soil may be near saturation.

Causes of inefficiency: Over-irrigation or uneven flow causes deep percolation beyond roots; loose sandy soils exacerbate this. Evaporation losses rise when water stands exposed on hot, windy days. Surface methods (furrow/flood) typically lose 40–50% of applied water to evaporation or deep percolation. For example, one irrigation expert notes that surface irrigation wastes “more water than the plants need”, with “much” lost to evaporation and the rest percolating away. Under normal management, furrow/flood efficiencies average only 50–60% (i.e., 40–50% waste).

Measurement methods: A flowmeter at the pump or gate gives total water applied. Soil moisture sensors or tensiometers, before and after irrigation, can quantify water stored. Tailwater (runoff) can be collected and measured with a container at the field end. In small plots, one can use a calibrated bucket to catch irrigated water for a known time. To estimate evaporation, a Class-A pan or an “Et gauge” might be used. Regular recording of inflow and outflow (and crop growth) helps calibrates efficiency.

Reducing losses (mitigation): To cut deep percolation, irrigate in smaller increments and more frequently, matching crop needs. Level the field so water spreads evenly; avoid overwatering the head end of furrows. Minimize runoff by installing bunds or tailwater pits. To cut evaporation, apply irrigation at cooler times (late evening), and use surface mulches or crop residues (which shield soil moisture). For furrow systems, land-leveling or laser grading gives a uniform shallow slope, reducing puddles and percolation. Lining canals or using pipes instead of open ditches can also save water. In all cases, maintain irrigation equipment to avoid leaks and ensure uniform flow.

6.2 Drip Irrigation

Drip (micro-irrigation) applies water slowly at the plant base, directly into the root zone, minimizing losses. Its advantages include very high-water efficiency (often 70–90% vs 50–60% for surface systems), reduced evaporation, better weed control (since soil between lines stays dry), and the ability to inject fertilizer (“fertigation”). Once installed, drip systems usually require less daily labor (automated timers) and can increase the yields of fruits and vegetables.

Layout and components

A simple low-cost drip system consists of:

1. Water source and pump (if gravity is insufficient). A solar or engine pump may be needed. (Open-canopy farm sources often need ~10–20 psi for drip; very low-flow systems can run at 1–3 psi if gravity-fed(Ernst, 2017).)
2. Filter to catch sand or debris; essential if the water is turbid.
3. Pressure regulator or pressure-reducing valve, ensuring uniform pressure (drip tape often needs ~10 psi).
4. Mainline and submain pipes (½″–2″ PVC or polyethylene pipe.
5. Control valves for zones.
6. Laterals (drip tubing or tape). Options include flat drip tape or a thicker drip tube with built-in emitters.
7. Emitters/drippers or pre-installed inline, placed near each plant.
8. Fittings and stakes to connect pipes and anchor tubes.
9. Optional timer/controller to automate irrigation.

Installation steps:

1. Site preparation: Level or level each bed as much as possible to ensure even flow. Lay out the irrigation plan to match crop rows.
2. Assemble mainline: Connect the pump or hydrant to the filter and pressure regulator, then to the main PVC or poly pipe.
3. Run submains and laterals: Place laterals along each crop row. Attach drip tubing to the mainline with tees or barbed connectors. Stake tubes flat on the soil or slightly buried.
4. Install emitters: Punch holes in tubing (if tape) and insert emitters at plant locations, or use inline tape with built-in emitters spaced appropriately (e.g., 12″–18″ apart).
5. Flush and test: Open the system briefly to flush out debris, then check each emitter for proper flow. Adjust the pressure regulator as needed to get even drips.
6. Cover and mulch: After testing, cover tubing with mulch (straw or plastic) to reduce evaporation and protect tubing. Mulch also suppresses weeds between rows.

Routine maintenance checklist:

1. Filter cleaning: Flush or clean the filter at least weekly (more if the water is very dirty) to prevent clogging.
2. Flush lines: Periodically open ends of lines to flush sediment.
3. Inspect emitters: Check flows during irrigation. Clogged emitters can be cleaned by soaking in vinegar or replaced.
4. Check pressure: Ensure the pressure regulator is working and lines aren’t leaking.
5. Repair leaks: Patch any holes or rodent damage in tubing (repair kits or tape).

Common problems and fixes:

1. No flow at emitters: Likely a clog. Clean filter and emitters or check for collapsed tubing.
2. Uneven flow: Pressure too high/low or line slope issue. Ensure correct pressure and even land slope.
3. Leaks on the surface: Repair holes or replace sections of tubing.
4. Rodent damage: Use underground drip lines or guard against animals.

6.3 Furrow and Flood Irrigation

Methods: In furrow irrigation, crops are planted on ridges or beds, and water is delivered in small ditches (furrows) between them. Gravity carries water down the furrows, soaking in along the sides. In flood irrigation, a whole field (basin) or long border strip is ponded with water (like rice paddies). These methods require a relatively level field and are the simplest to install.

Risks and inefficiencies: Gravity irrigation is inexpensive but inefficient. Water is not distributed evenly – the head of a furrow often receives excess, while the tail end may be under-watered. Typically, 30–50% of surface-irrigated water is lost. Runoff at the end of furrows is common. Excess percolation beyond the root zone is wasteful (it can raise the water table). Open flooding also means that much water evaporates before plants use it. Moreover, moving water in open channels can erode soil and create rills or gullies. Long-term use often causes salinization: waterlogging brings salts to the surface by capillary rise, and without good drainage, salts accumulate where water evaporates.

Improvement strategies

Low-cost improvements can greatly increase efficiency:

1. Land leveling: An even, shallow slope prevents water pooling. Laser or spade leveling (for very small plots) can be used. A uniform bed slope avoids tailwater runoff and standing pools.
2. Surge irrigation: Apply water in short on-off cycles. Intermittent flow allows each pulse to infiltrate before adding more. Studies show surge furrow irrigation can save 25–40% of water while maintaining or raising yields. (In one wheat trial, surge saved ~27–37% water and increased yield by ~12–18% over continuous flow.)
3. Gated pipe systems: Instead of flooding a whole furrow, run a rigid pipe with small gates every few feet. Opening a gate sends water into that section. This improves uniformity and reduces labor vs manually flooding. Gated PVC pipes are a low-cost innovation for small farms.
4. Alternate furrow irrigation: Water every other furrow. The adjacent plants can still benefit from root spread. This saves up to half the water.
5. Tailwater reuse: Capture runoff from the end of fields in a pond or sump, then pump it back to the head or storage tank. This requires some extra pipe/pump, but greatly reduces waste.
6. Soil and crop management: Ridge planting and matching crop row spacing to furrow width can improve coverage. Planting fast-growing ground cover crops in fallow furrows can reduce erosion.

6.4 Avoiding Waterlogging

Waterlogging occurs when excess irrigation or poor drainage saturates the soil, cutting off oxygen to the roots. Signs are Visible surface water in low spots after irrigation, or simply soggy, blackish soil patches. Leaves turn yellow or wilt (oxygen-starved plants). A clear sign is the growth of wetland weeds (e.g., nutgrass Cyperus, bulrush/cattail Typha) in depressions (Curry & Curnow, 2024). Soil may become gray or blueish below the surface. If waterlogging is suspected but not obvious on the surface, dig a few test holes (~30 cm deep). If groundwater seeps in or remains in the hole, the soil is waterlogged.

Corrective measures (drainage): The goal is to remove excess water from the root zone. Low-cost solutions include:

1. Surface drains (ditches): Dig open shallow trenches along field edges or between beds to channel water out. Even a simple furrow at the field's low end can serve as a drainage ditch. The drain should slope downhill gently to a safe outlet (stream, road culvert, or vegetated area). Line ditches with grass if possible to reduce erosion.
2. Subsurface drains: In critical spots, a perforated PVC or clay pipe buried in a gravel trench (a “French drain”) can collect groundwater; these may be costly but are very effective.
3. Raised beds/ridges: Plant crops on mounded beds. The removed soil can form small irrigation/drainage channels. For example, on coffee farms, waterlogging-prone trees were relocated onto raised ridges using soil from dug drains. In vegetable beds, even a 20–30 cm raised row can keep roots above the water table.
4. Check structures: Small sandbag/check gates or brushwood weirs across ditches can slow water and prevent scouring, helping drains work better.
5. Crop choice: In chronically wet spots, grow water-tolerant crops (rice, taro, cattails) or grasses that use excess moisture, until a permanent solution is built.
6. Preventing salinity: Waterlogging often brings salts up; irrigate lightly with good quality water to leach salts below roots (if drainage will remove them). Amend soils with gypsum if sodicity (alkali) is a problem.

An effective drainage system should “drain away excess water and discharge it in a controlled manner”, preventing low areas from flooding(Australian Government, 2025). If a field is on a slope, terraces or broad-crested ridges can also divert water safely. In general, ensure outlets are clear (no trash or roots blocking flow) and that drains direct water away from plant roots.

Monitoring

After heavy irrigation or rain, regularly inspect for puddles or slow infiltration. Monitor crops for stunting or yellowing (water stress). Installing a simple observation well (a PVC pipe with holes in a wet spot) allows checking of the water table depth. Keeping a log of rainfall/irrigation vs plant response can help avoid future problems. Routine checks of drainage ditches (removing debris) keep them functional.

Mechanism

Nutrient leaching occurs when soluble nutrients (especially nitrate-N and potassium) are washed beyond the root zone by excess water. When irrigation (or rain) intensity exceeds the soil’s infiltration capacity or crop uptake, nitrates move downward with percolating water. Coarse sandy soils and sloping fields are particularly prone. Over-irrigation, shallow root systems, or applying fertilizer well before crops can all increase leaching risk.

Best management practices

The key is to match fertilizer supply with plant demand and minimize excess in the root zone. Recommended practices include:

1. Split applications: Apply fertilizer in smaller doses timed to crop growth stages rather than all at planting. For example, give a starter dose at planting and additional N mid-season. Splitting greatly reduces unused N subject to leaching. Research shows that for sandy soils, split N (including applying some via irrigation) improved yields and reduced losses.
2. Fertigation (chemigation): Inject part of the fertilizer (especially nitrogen) into the irrigation system. This allows frequent, small applications during growth when the plant is actively taking up N, and avoids large doses before heavy rain. A University of Minnesota Extension resource notes that fertigation is a “recognized best management practice to reduce nitrate leaching”. Safety (backflow preventers) and uniformity must be ensured.
3. Placement: Band or incorporate fertilizers near the plant roots instead of broadcasting on the surface. This concentrates nutrients where plants can access them. For example, placing N and P in a shallow band 5–10 cm beside the seed row reduces runoff of P and keeps N in the root zone.
4. Slow-release or organic sources: Use coated or slow-release N fertilizers that dissolve gradually; this lowers peak soil nitrate. Adding organic matter (compost, manure) improves soil structure and cation exchange capacity, helping hold nutrients. Organic mulches or cover crops can scavenge leftover N before it leaches away.
5. Soil moisture control: Avoid irrigating so frequently that there is standing water or percolation beyond roots. Where possible, use soil moisture probes or tensiometers to irrigate only to replace crop needs (see Sec. 6.1).
6. Buffer strips and cover crops: Plant grass or deep-rooted cover crops in field margins or between plots to capture runoff nutrients. A vegetated filter strip can trap nitrates in soil before they reach waterways. Likewise, cover crops (legumes, grasses) in fallow periods take up residual N and prevent it from leaching over winter.

Monitoring

Simple indicators can warn of leaching. Yellowing foliage may indicate N deficiency if leached. Regular soil tests (especially for nitrate-N) at various depths can quantify any nutrient buildup or losses. Installing shallow piezometers can allow occasional sampling of drainage water for nitrate content. Keep records of application rates, irrigation events, and yields – over time, you may see that excess fertilizer or water application did not increase yield (signaling inefficiency). Visual clues like algal growth in puddles may also hint at nutrient runoff.

7.1 Objectives and Scope

• Ensure Water Infrastructure Readiness: Inspect and repair farm pond embankments and outlets before the rains.
• Protect Soil and Water: Stabilize bunds with vegetation and check soil conservation measures to prevent erosion.
• Monitor and Respond: During rains, routinely observe runoff, pond levels, and soil erosion; adjust practices (e.g., fertilizer application) to match conditions.
• Optimize Dry-Season Use: Schedule irrigation and maintain ponds/structures to sustain crops through dry spells.
• Facilitate Continuous Improvement: Use an Annual Self-Evaluation Form to rate each activity (1–5 scale) and plan corrective actions.

7.2 Background: Maziba Farm Context

Maziba lies in the Kigezi highlands of southwestern Uganda (elevation ~1500–2300 m)(Miiro, 1999). The climate is cool-temperate with a mean annual temperature ≈of 17–18 °C and high humidity. Annual rainfall is roughly 1,200–1,500 mm (higher on ridge tops, lower in valleys). There are two rainy seasons: the main rains from about March to May (peak in April) and the shorter rains from September to November (peak in October) (Nseka et al., 2022). The driest months are mid-year (June–August) and early January. This bimodal pattern must be matched by our preparation and irrigation timing. Soils on Maziba farms are typically weathered tropical soils – a mix of acidic clay loams and sandy loams (Ferralsols, Luvisols, Regosols) (Nseka et al., 2022). Organic matter is modest; many fields benefit from terraces and manure to improve fertility. Common crops include maize, beans, Irish potatoes, vegetables (cabbage, carrots, tomatoes, onions), and tea. Many farmers also plant tree crops (bananas, coffee) on the slopes.

Farm ponds and bunds: In this region, small earthen ponds or dams (often on farms or common lands) are used to capture runoff or stream water for supplemental irrigation. These ponds are generally built with local soil; a central clay core or compacted earthen core is used for water tightness, and bunds (embankments) are constructed around a small basin. An outlet pipe or spillway prevents overtopping. Properly maintained pond embankments and vegetated bunds can reliably supply water in dry spells, but if neglected, they can leak or wash out.

7.3 Pre-Rainy Season Preparation

Structural Inspection When: 2–3 months before the first rains. How: Walk the full length of every dam/pond embankment (top and downstream toe) and spillway, especially after a dry season. Look for:

1. Cracks, settlement, or sinkholes on the crest or slopes (which may signal piping or subsidence).
2. Burrows or animal holes. Small animal tunnels can weaken dams. Fill any holes immediately with compacted soil.
3. Seepage or wet spots. Damp patches or unusual vegetation at the toe indicate leaks. Mark these areas for sealing.
4. Spillway/outlet channel. Ensure the spillway is clear of debris/stones and the outlet pipe is unobstructed; a blocked spillway can cause overtopping.

Tools

Rope level or straight board for checking crest flatness, shovel/hoe, and digging bar (for probing potential voids).

1. Bund Repair: When: Right after inspection findings.
2. Fill and compact soil: For any small breaches or eroded sections, excavate loose material, then backfill with native clay-rich soil in 10–20 cm layers, compacting each layer with a tamper or foot. Ensure the repaired core of the bund is as impervious as the rest.
3. Install erosion protection: On bare slope faces or spillways, cover with cuttings of elephant (Napier) grass or vetiver grass in closely spaced rows. These grasses have deep roots that knit soil and resist surface runoff. In Kabale, farmers traditionally used Napier grass on terraces.
4. Hedgerows: If available, plant lines of vetiver or other grasses along contour lines above the pond to intercept runoff before it hits the banks.

Materials

Clay soil (preferably from a borrow pit nearby with >20% clay content), stones or riprap for toe protection (optional), and grass cuttings.

Safety: Watch footing on steep banks. Use gloves when handling sharp grasses.

1. Grass Replanting: If old grass barriers or covers have dried out, replant:
2. Cut healthy slips (30–50 cm tall) of elephant grass or vetiver from robust plants on the farm.
3. Prepare holes along bunds every 0.5–1 m using a pointed bar or hoe. Insert grass slips, covering bases with soil, and water them in.
4. Mow any overgrown banks to remove weeds before planting, so new grasses establish better.

Timeline

Start inspections in January, complete repairs and planting by late February. This ensures bunds have time to stabilize and grass to root before heavy rains.

Labor: A team of 2–4 people can inspect and repair a typical small pond in 1–2 days (depending on size); grass planting on a 0.1 ha pond bank might take 1–2 days.

Example of Pre-Rainy Checklist

1. All dams walked and inspected for cracks/seepage.
2. Holes/animal burrows filled and compacted.
3. Crest leveled; low spots refilled.
4. Grass slips planted on bare bunds.
5. Spillway cleared of vegetation.

7.4 Rainy Season Monitoring and Management

During the rains, the focus is on observing how water behaves and catching any emerging problems quickly. Use simple indicators and record data regularly. Key monitoring activities include:

1. Runoff and Pond Level: Install a staff gauge (a vertical ruler) in the pond so you can note water depth after rain. Log rainfall (using a home-made gauge or bought rain gauge) and pond depth once a week or after each major rain. A sharp drop in depth on consecutive days (with no outflow) signals a leak. This is evidenced by the depth (cm) of water vs collected rainfall (mm). If >5 cm drop/day with little outflow, investigate leaks or increased uptake. Tools used include a simple rain gauge (e.g., a plastic jar). A staff gauge can be a painted wooden stake driven into the bank. If a leak is suspected, partially drain the pond (late dry season) to pinpoint and seal it (see Dry Season).
2. Erosion Checks: After heavy rains, inspect fields and pond banks for rills or gullies. Look especially at outlets and slopes. Indicators include Visible sediment deposit at pond inlet, rill starting on slope. This should be done every 2–3 weeks during the main rains and after very heavy storms. When small rills are visible, fill them with soil immediately and cover with mulch or grass. If bund shoulders erode, add stones or fabric temporarily.
3. Fertilizer Timing: Avoid fertilizing (especially nitrogen) immediately before forecasted heavy rains. Runoff from fertilized fields can carry nutrients (nitrates, phosphates) into the pond, causing algal growth and reducing water quality. Such information can be obtained from using the radio/phone news. If heavy rain is expected within 3 days, postpone fertilizer application. Otherwise, apply on dry soil followed by light irrigation to incorporate it.
4. Water Quality monitoring (optional): If using pond water for drinking (unlikely for Maziba farm, but for completeness), simple tests (like turbidity or DIY nitrate strips) could be used. But priority is quantity.
5. Data Recording: Keep a simple logbook or notebook in a dry place. Record dates of inspection, rainfall, pond depth, and any notes (e.g., “Rain event 4/3: 80 mm, pond +60 cm”). Templates can be printed or just columns in a notebook.
6. Low-cost Monitoring Tools: Alongside staff gauges and rain gauges, farmers can use calibrated buckets (to measure pump output) or simple soil probes (stick inserted to feel moisture). Photos or sketches of damage can be kept.

7.5 Dry Season Strategy

The dry months require active water use and preventive maintenance. Key tasks are to irrigate wisely, maintain pond capacity, and prepare soil for the next rains.

• Irrigation Scheduling: Plan watering based on crop needs and soil moisture, not a fixed calendar. Methods:
• Crop stages: Irrigate heavily when crops are at critical growth phases (e.g., flowering, tuber development), less when young or nearly mature.
• Soil feel test: Check soil moisture by digging a small hole 20–30 cm deep. If soil clumps loosely around fingers and no water is seen, moisture is adequate. Dry, dusty soil means irrigate.
• Simple sensor: Use a soil moisture meter or tensiometer in a representative area (see Tools above). For example, keep a tensiometer at 30 cm depth in a crop row; read it weekly. If it shows high tension (very dry), it’s time to irrigate(Morris & Energy, 2006).
• Evening/Morning watering: Irrigate either early morning or late afternoon/evening to reduce evaporation loss.
• Volume check: If using a pump, measure flow: pump into a bucket for one minute to get L/min, and time irrigation blocks accordingly.

Pond Maintenance

After rains and before draining, remove silt and debris:

• Desilting: If sediment has accumulated near the inlet, dig it out and spread it on fields as rich topsoil. This restores pond volume.
• Weed control: Remove emergent weeds around edges (cover with plastic or pull them out) – aquatic weeds can choke water use and harbor mosquitoes.
• Leak detection: Near the start or end of the dry season, partially drain the pond to below the spillway. Check for seepage pools on the downstream slope or wet spots as water seeps. Repair cracks by packing fresh, moist clay in holes.
• Fish presence: If the pond has fish, catch or move them before major maintenance.

Soil Moisture Tracking

Even during the dry season, conserve soil moisture:

• Mulching: Apply crop residues or grass on open soil to slow evaporation.
• Crop residue: Leave roots of harvested crops in place to trap moisture and improve soil organic matter for the next season.
• Moisture sensors: Periodically re-check any soil moisture probes/tensiometers to verify irrigation is adequate.

Leak Detection Methods

If pond water drops unexpectedly when not irrigating, test for leaks:

• Fill test: Fill the pond and measure the water inflow needed per day. If it falls more than ~2–3 cm/day without outflow, seepage is likely.
• Smoke test: Light a campfire near suspected leak points; rising bubbles in water can mark a leak location. (Caution: safe distance from vegetation!)
• Timber insertion: Drive a long log into soil at the suspected leak point; if it floats up as soil erodes under it, there’s a void.
• Equipment Care: Clean and store pumps, hoses, and tools after use. Inspect the pump strainer/inlet to ensure it’s not clogged with silt.

7.6 Annual Self-Evaluation Form

At year’s end, farmers should review all tasks. Below is a fillable template – print and keep with farm records. Rate each item and note improvements needed. Higher scores mean better performance (5=excellent, 3=adequate, 1=poor).

Activity/Item	Score 1–5	Comments or Next Actions
Pre-season inspection completed (Y/N)	___
Bunds repaired/compacted (Yes/No)	___	e.g., If no, plan a bund-repair workshop
Grass cover on bunds (good/patchy/bare)	___	Consider replanting or mulching
Spillway clear (Y/N)	___
Runoff erosion minimal (Yes/No)	___	If no, add contour hedges or mulch
Fertilizer timing (avoided heavy rains)	___	Adjust calendar or use slow-release N
Rainfall & pond levels recorded (Y/N)	___
No major leaks or breaches (Y/N)	___	Plan leak repair if needed
Irrigation schedule followed (Yes/No)	___	If no, try soil probe or local ET table
Pond maintained/desilted (Y/N)	___
Soil moisture adequate at planting (Y/N)	___
Overall water use efficiency (1–5)	___	E.g., ratio of water applied vs. yield

Scoring Guidance:

4–5 indicates tasks were done well with no issues; 2–3 suggests some gaps; 1 means tasks were neglected. For any score ≤3, identify corrective steps under “Comments.” For example, if bunds scored 2, plan for a communal repair day or training on pond construction. Use this form annually to track improvements over time.

Sample Checklist

For quick reference, an example checklist for Pre-Rainy Season (to pin on a wall):

1. Inspect dam/pond: Walk all embankments; note any cracks, leaks, or animal holes.
2. Repair issues: Fill cracks with clay; compact core; plug holes.
3. Check vegetation: Plant grass slips on bare bunds (list grass planted.
4. Clean spillway/outlet: Remove debris from the spillway channel.
5. Tools ready: Ensure pump/oil functioning; have tarp/clay ready for leak fixes.

Similarly, a Rainy-Season checklist might include “Check pond after every big storm” and “Record rainfall and pond height weekly” as summarized in Figure 1 with key seasonal activities:

Seasonal activities in the Maziba sub-catchment farms (2026)

References

Australian Government. (2025). Smallholder Coffee Production in Papua New Guinea – Farmer Training Guide.

Brunner, G. W. (2026). HEC-RAS River Analysis System. HEC-RAS 2D User’s Manual. Version 65. https://apps.dtic.mil/sti/html/tr/ADA311953/

Curry, G., & Curnow, J. (2024). Improving livelihoods of smallholder coffee communities in Papua New Guinea. Final Report ASEM/2016/100). ACIAR. https://pacificlivelihoods. com/projects. https://www.aciar.gov.au/sites/default/files/2024-08/asem-2016-100-final-report.pdf

Datta, S., Taghvaeian, S., & Stivers, J. (2017). Understanding soil water content and thresholds for irrigation management. https://openresearch.okstate.edu/entities/publication/53124aff-effc-47e6-a304-c7403c69f906

Desta, L., & Adunga, B. (2012). A field guide on gully prevention and control Nile Basin initiative, eastern Nile subsidiary action program (ENSAP). Eastern Nile, Technical Regional Office (ENTRO), Eastern Nile Watershed Management Project, Addis Ababa.

Ernst, M. (2017). Irrigation Systems. CCD-FS-1. Lexington, KY: Center for Crop Diversification, University of …. https://ccd.uky.edu/sites/default/files/2024-11/ccd-fs-1_irrigation.pdf

Friday, K. S. (1999). Imperata grassland rehabilitation using agroforestry and assisted natural regeneration. World Agroforestry Centre. https://books.google.com/books?hl=en&lr=&id=aXULlRwU-vwC&oi=fnd&pg=PA1&dq=IMPERATA+GRASSLAND+REHABILITATION+USING+AGROFORESTRY+AND+ASSISTED+NATURAL+REGENERATION&ots=481T2XOVAE&sig=p8ZmUJkTxT-ab9BKp8QwPkplycQ

Government of Uganda. (2000). The National Environment (Wetlands, River Banks And Lake Shores Management) Regulations, No. 3/2000.

Government of Uganda. (2016). Technical Design Manual for Labour Intensive Public Works.

Jayashree, B. (2018). Contour bunding preserves soils and boosts farmers’ incomes by 20% in Mali. https://cgspace.cgiar.org/bitstreams/12c366d8-e612-4dfe-adcc-5e3e6a246ca8/download

Johnson, A. I. (1963). A field method for measurement of infiltration. USGPO,. https://pubs.usgs.gov/publication/wsp1544F

Kasolo, W. K., & Temu, A. B. (2008). Tree species selection for buffer zone agroforestry: The case of Budongo Forest in Uganda. International Forestry Review, 10(1), 52–64.

Miiro, R. (1999). Factors enhancing terrace use in the highlands of Kabale district, Uganda. Sustaining the Global Farm: Selected Papers from the 10th International Soil Conservation Organization Meeting Held 24th–29th May. https://topsoil.nserl.purdue.edu/nserlweb-old/isco99/pdf/ISCOdisc/SustainingTheGlobalFarm/P094-Miiro.pdf

MN15680.pdf. (n.d.). Retrieved 19 March 2026, from https://www.cifor-icraf.org/publications/downloads/Publications/PDFS/MN15680.pdf?

Morris, M., & Energy, N. (2006). Soil moisture monitoring: Low-cost tools and methods. National Center for Appropriate Technology (NCAT), 1–12.

Ndemere, J. (2018). Effect of Soil and Water Conservation Technologies on Soil Properties in Maziba Sub Catchment, Kabale_Uganda [MSc Thesis, Kenyatta University]. https://ir-library.ku.ac.ke/items/de4158d2-eff9-4c4c-97a2-39c29a4a9416

Nseka, D., Kakembio, V., Mugagga, F., Semakula, H., Opedes, H., Wasswa, H., & Ayesiga, P. (2022). Implications of soil properties on landslide occurrence in kigezi highlands of South western Uganda. In Landslides. IntechOpen. https://www.intechopen.com/chapters/78594

Rivenshield, A., & Bassuk, N. L. (2007). Using organic amendments to decrease bulk density and increase macroporosity in compacted soils. Arboriculture and Urban Forestry, 33(2), 140.

Rusoke, C., Nyakuni, A., Mwebaze, S., Okorio, J., Akena, F., & Kimaru, G. (2000). Uganda Land Resources Manual. A Guide for Extension Workers. Sidas Regional Land Management Unit. Nairobi Https://Www. Worldagroforestry. Org/Publicati on/Uganda-Land-Resources-Manual-Guideextension-Workers. https://fresh-teacher.github.io/s4/AGRIC%20LAND%20RESOURCE%20MANAGEMENT_123716.pdf

Saturday, A., Herrnegger, M., Kangume, S., & Stecher, G. (2025). Spatiotemporal variability of surface water quality in tropical agriculture-dominated catchments: Insights from water quality indices. Scientific Reports, 15(1), 42971.

Shinde, P., & Chavhan, S. (2018a). A Water Conservation Technique: Continuous Contour Trenches. https://www.mahasib.com/porta/AZmX0IxdIn.pdf

Shinde, P., & Chavhan, S. (2018b). A Water Conservation Technique: Continuous Contour Trenches. https://www.mahasib.com/porta/AZmX0IxdIn.pdf

Stephens, T. (2010a). Manual on small earth dams. FAO; https://openknowledge.fao.org/items/8f90c9e1-0cfb-48b1-8078-1a014da11c2f

Stephens, T. (2010b). Manual on small earth dams. FAO; https://openknowledge.fao.org/items/8f90c9e1-0cfb-48b1-8078-1a014da11c2f

Truong, P., Van, T. T., & Pinners, E. (2008). Vetiver system applications technical reference manual. The Vetiver Network International, 89. https://www.researchgate.net/profile/Elise-Pinners/publication/265032101_VETIVER_SYSTEM_APPLICATIONS_Technical_Reference_Manual/links/554f570a08ae739bdb906a33/VETIVER-SYSTEM-APPLICATIONS-Technical-Reference-Manual.pdf

United States Natural Resources Conservation. (1981). Ponds: Planning, design, construction. US Department of Agriculture. https://books.google.com/books?hl=en&lr=&id=w2Sx77-yt40C&oi=fnd&pg=PP13&dq=Ponds+%E2%80%94+Planning,+Design,+Construction&ots=rOzqaI5ug1&sig=ZLd8z_rdB_jTn685J7z38BanYyw

USDA. (n.d.-a). Quick Guide to Photo Point Monitoring.

USDA. (n.d.-b). Soil Bulk density / Moisture/aeration: Guide for educators.

Zeng, F., Zuo, Z., Mo, J., Chen, C., Yang, X., Wang, J., Wang, Y., Zhao, Z., Chen, T., & Li, Y. (2021). Runoff losses in nitrogen and phosphorus from paddy and maize cropping systems: A field study in Dongjiang Basin, South China. Frontiers in Plant Science, 12, 675121.
